1
Engine displacement
autre
2
Year
1994
3
Trim
EURO TRAIL DELUXE - E940262
4
Parts Catalog
FRONT TORQUE ARM TRAIL DELUXE E940262 (49273827380020)
5
Parts Diagram
Parts Catalog
SUSPENSION ASSEMBLY TRAIL DELUXE E930243 (49273827380019)
by
REAR TORQUE ARM TRAIL DELUXE E940262 (49273827380021)
FRONT TORQUE ARM TRAIL DELUXE E940262 (49273827380020)
1
1
2
3
4
4
4
5
5
5
6
7
8
9
10
11
11
11
11
12
13
14
15
15
16
17
1
BOLT(10)
7515432
9999999
Not Available
2
SHAFT MOUNTING
5010149
9999999
Not Available
3
ARM FR.TORQUE BLK.
1540805067
Not Available
4
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
5
SCREW
7515415
9999999
Not Available
6
SPRING SHIELD
5430671
9999999
Not Available
7
SHOCK CTR.SUSP.
7041281
9999999
Not Available
8
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
9
SPRING-SHOCK SUSP
7041140
Not Available
10
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
11
BUSHING
7556301
$6,29 Unit Price incl. VAT
12
SPACER OUTER
5332784
9999999
Not Available
13
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
14
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
15
WASHER
7555716
$3,14 Unit Price incl. VAT
16
STRAP LIMITER
5410397
9999999
Not Available
17
BOLT
7515307
$7,34 Unit Price incl. VAT

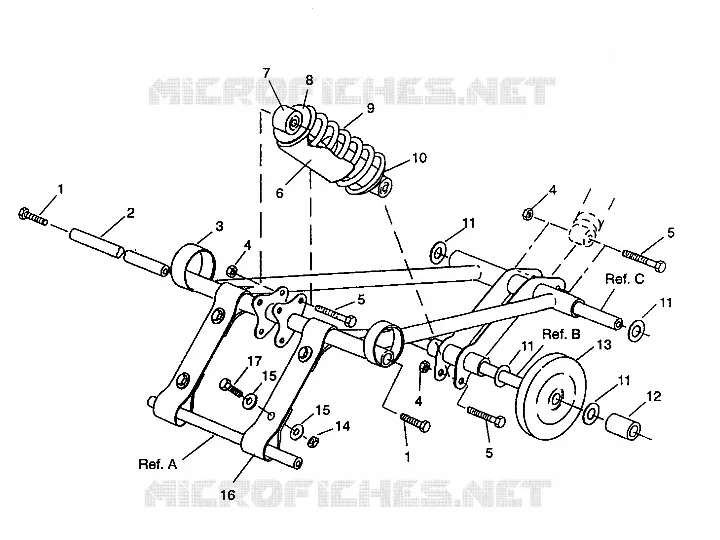

Find the detailed FRONT TORQUE ARM TRAIL DELUXE E940262 (49273827380020) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
