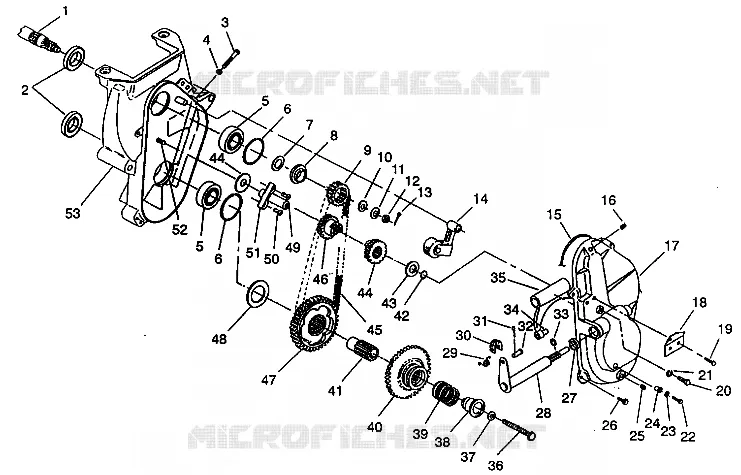

CHAINCASE ASSEMBLY TRAIL DELUXE E940262 (49273827380018)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN ASSEMBLY TRAIL DELUXE E940262 (49273827380017)
by
DRIVE CLUTCH TRAIL DELUXE E940262 (49273827380023)
CHAINCASE ASSEMBLY TRAIL DELUXE E940262 (49273827380018)
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
44
45
46
47
47
47
47
48
49
50
51
52
53
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
3
SCREW(10)
7515511
$7,34 Unit Price incl. VAT
4
NUT
7542404
$3,14 Unit Price incl. VAT
5
BEARING; 205 WITHOUT SEAL
3514304
$27,29 Unit Price incl. VAT
6
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
7
WASHER THRUST
7555876
9999999
Not Available
8
SPACER SPROCKET
5010270
9999999
Not Available
9
SPROCKET 22T 11
3222059
9999999
Not Available
10
WASHER
7555863
$4,19 Unit Price incl. VAT
11
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
12
SLOTTED NUT
7542810
$5,76 Unit Price incl. VAT
13
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
14
TIGHTENER ASMGEARCASE
1332096
9999999
Not Available
15
CHAINCASE GASKET
5410277
9999999
Not Available
16
PLUG(10) 1/2-14 NPT
7051520
$15,74 Unit Price incl. VAT
17
DESC NOT_AVAILABLE
5630813
Not Available
18
BRKTCABLE MOUNT
5222502067
Not Available
19
SCREW
7512252
9999999
Not Available
20
SCREW
7512497
9999999
Not Available
21
WASHER WROUGHT
7558403
$9,44 Unit Price incl. VAT
22
SCREW
7511909
9999999
Not Available
23
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
24
NUT-WELL
7541918
9999999
Not Available
25
PLUG DRAIN (10)
7052053
9999999
Not Available
26
SCREW
7512225
9999999
Not Available
27
OIL SEAL
3610029
9999999
Not Available
28
SHAFT SHIFT
1341093067
Not Available
29
SPRING REV.CABLE TENSION
7042044
9999999
Not Available
30
CLEVIS
5222606
9999999
Not Available
31
PIN-COTTER(10)
7661205
$1,56 Unit Price incl. VAT
32
CLEVIS PIN
7661830
$7,34 Unit Price incl. VAT
33
RING RETAINER
7710415
9999999
Not Available
34
PIN; DOWEL
7661826
9999999
Not Available
35
KIT SHIFT FORK/SHAFT
2200363
9999999
Not Available
36
SCREW NYLOK
7515348
9999999
Not Available
37
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
38
RETAINER DRIVE COUPLER
5130727
9999999
Not Available
39
SPRING; COMPRESSION
7041309
9999999
Not Available
40
GEAR ASMREVERSE
1341121
9999999
Not Available
41
COUPLER DRIVE
5130720
9999999
Not Available
42
O-RING
5410589
9999999
Not Available
43
WASHER THRUST
7555877
$14,69 Unit Price incl. VAT
44
PINION GEAR ASSEMBLY
1341075
9999999
Not Available
45
CHAIN 68 PITCH
3224025
Not Available
46
GEAR ASM PINION
1341076
9999999
Not Available
47
KIT REV.GEAR G (93STARLITE )
1341112
9999999
Not Available
47
BEARING NEEDLE
3555104
9999999
Not Available
48
WASHER
7555871
9999999
Not Available
49
SHAFT PINION
5130728
9999999
Not Available
50
SCREW
7512019
9999999
Not Available
51
BRKT CHAIN RETENTION
5222298
9999999
Not Available
52
SCREW; CARRIAGE
7515477
9999999
Not Available
53
CHAINCASETOP MNT.BRAKE
5130849
9999999
Not Available

Find the detailed CHAINCASE ASSEMBLY TRAIL DELUXE E940262 (49273827380018) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
