REAR SUSPENSION for POLARIS SPORTSMAN 400 HO 4X4 - A09LH46AQ/AX/AZ from 2009

REAR SUSPENSION

1

BOLT-M10X1.5X75 HX HD FLG

7518473

$9,44 Unit Price incl. VAT

2

BUSHING; EXTRA SHORT; 25.4 MM

5436971

9999999

Not Available

3

PIVOT TUBE; 51.95 MM

5135495

9999999

Not Available

4

HEX FLANGE NUT; 10 MM X 1.5 MM

7547313

$2,09 Unit Price incl. VAT

5

HEX HEAD FLANGE BOLT 10MM X 1.5MM X230MM

7518472

$11,54 Unit Price incl. VAT

6

BOLT-M10X1.5X20 HXHDFLG

7518700

$7,34 Unit Price incl. VAT

7

BRKT-SUPPORT REAR SUSP BLK

5249760067

Not Available

8

PIVOT TUBE 209.55 MM

5135494

9999999

Not Available

9

A-ARM BUSHING; LONG; 102.36 MM

5436973

$9,44 Unit Price incl. VAT

10

FITTING LUBRICATION THREADED(1

7080433

$2,09 Unit Price incl. VAT

11

CONTROL ARM WELD REAR LEFT GS BLK

1016211067

Not Available

11

WELD-REAR CONTROL ARM;RH;BLK

1016212067

Not Available

12

HEX HEAD FLANGE BOLT 10MM X 1.5MM X 95MM

7518468

$10,49 Unit Price incl. VAT

13

BUSHING-SHORT 35.05MM

5436972

5439270

$4,19 Unit Price incl. VAT

14

PIVOT TUBE; 73.74 MM

5135493

$47,24 Unit Price incl. VAT

15

BRKT-ARM CONTROL LH BLK

5249046067

Not Available

15

BRKT-ARM CONTROL RH BLK

5249047067

Not Available

16

NUT-NY INS;M10X1.5;HEX;ZINC;YW

7547385

$2,09 Unit Price incl. VAT

17

HEX HEAD FLANGE BOLT 10MM X 1.5MM X 165

7518668

$13,64 Unit Price incl. VAT

18

PIVOT TUBE; 142.74 MM

5135637

$62,99 Unit Price incl. VAT

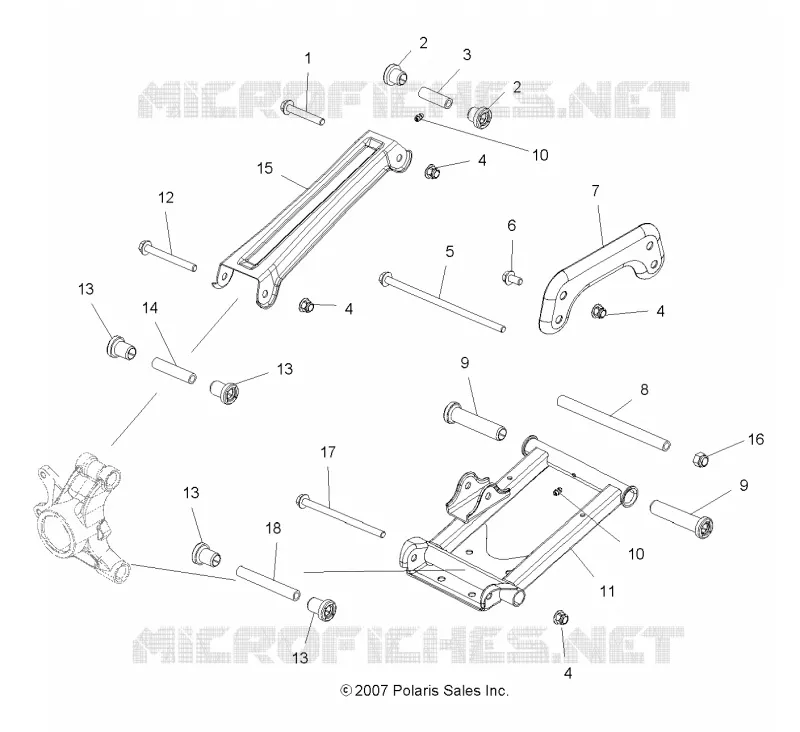

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
