ENGINE, AIR INTAKE SYSTEM for POLARIS SPORTSMAN 400 HO 4X4 - A09LH46AQ/AX/AZ from 2009

ENGINE, CARBURETOR LOWER

ENGINE, AIR INTAKE SYSTEM

1

PRECLEANER FILTER SLEEVE

5811633

$19,20 Unit Price incl. VAT

2

FILTER AIR

7080595

7083107

$51,23 Unit Price incl. VAT

3

BAND CLAMP; NARROW

7080707

$5,76 Unit Price incl. VAT

4

AIRBOX COVER SEAL

5812829

5813949

$52,49 Unit Price incl. VAT

5

AIRBOX COVER

5432868

9999999

Not Available

6

CLIP

5242044

$17,84 Unit Price incl. VAT

7

INTAKE GASKET

5411422

$10,49 Unit Price incl. VAT

8

SCREW

7517317

$6,29 Unit Price incl. VAT

9

DUCT-AIR BOX INTAKE

5437280

9999999

Not Available

10

FOAM-SEAL 1.5 X 12

5813255

9999999

Not Available

11

AIR INTAKE BOX; SHORT TAB

5437383

9999999

Not Available

12

HOSE CLAMP

7080699

$3,14 Unit Price incl. VAT

13

LINE BREATHER 3/8 ID.

8450073600

Not Available

14

CLAMP-P STL 1 IN BDL DIA-B

7080913

9999999

Not Available

15

HOSE BRTHR .47-.38X13.5

5411866

9999999

Not Available

16

CLAMP HOSE SPRING

7080694

$10,49 Unit Price incl. VAT

17

BREATHER FILTER IN LINE

2530029

9999999

Not Available

18

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

19

AIR BOX BOOT

5413364

$104,99 Unit Price incl. VAT

20

SLEEVE-CARB INNER

5433847

$27,29 Unit Price incl. VAT

21

BREATHER-LINE-115 CMSLIT

5413003

9999999

Not Available

22

TRAP PLUG

5435299

9999999

Not Available

23

FUEL LINE

8450059150

Not Available

24

CLAMP HOSE

7080650

$7,34 Unit Price incl. VAT

25

FOIL-AIRBOX

5813229

9999999

Not Available

26

FLAT WASHER

7555859

$2,09 Unit Price incl. VAT

27

SCREW

7515179

$4,19 Unit Price incl. VAT

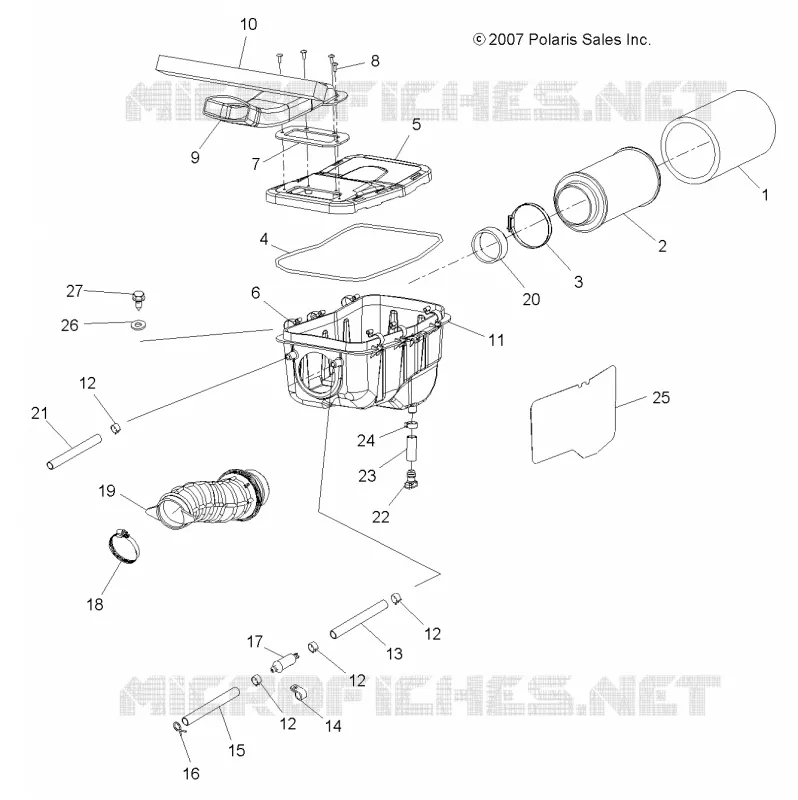

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
