COOLING SYSTEM for POLARIS SPORTSMAN 400 HO 4X4 - A09LH46AQ/AX/AZ from 2009

COOLING SYSTEM

1

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

2

FAN AND MOTOR ASSEMBLY; 190 MM

2520850

9999999

Not Available

3

CAP-PRESSURE 13 PSI

1240044

1240508

$89,24 Unit Price incl. VAT

4

SCREW

7512084

$2,09 Unit Price incl. VAT

5

NECK FILLER REMOTE COOLANT FITTING

5435196

9999999

Not Available

6

SPRINGBAND CLAMP; 27/12; GREEN

7080841

$13,64 Unit Price incl. VAT

7

ENGINE HOSE; FILLER

5413367

9999999

Not Available

8

CLAMP HOSE 1.25 WORM DRIVE

7080696

$10,49 Unit Price incl. VAT

9

HOSE-ENGINE LOWER

5413365

9999999

Not Available

10

SPRINGBAND CLAMP; 35/12

7080844

$19,94 Unit Price incl. VAT

11

HOSE CLAMP

7080807

$17,84 Unit Price incl. VAT

12

SPRING LOCK WASHER

7552801

$3,14 Unit Price incl. VAT

13

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

14

HEX HEAD BOLT; 6 MM

7517975

9999999

Not Available

15

BRKT-RADIATOR BLK

5251445067

Not Available

16

RADIATOR MOUNT BUSHING; LOWER

5410584

$10,49 Unit Price incl. VAT

17

HOSE-ENGINE UPPER

5413366

9999999

Not Available

18

CORE RADIATOR 400 HO

1240361

9999999

Not Available

19

CARBURETOR MOUNT; RUBBER

3110071

9999999

Not Available

20

FUEL LINE; 1/4 ID

84500031525

Not Available

21

FITTING 90 DEGREE

7052065

$13,64 Unit Price incl. VAT

22

SURGE TANK

5436936

$152,24 Unit Price incl. VAT

23

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

24

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

25

GASKET

5810279

$4,19 Unit Price incl. VAT

26

HEX NUT

7542105

$7,34 Unit Price incl. VAT

27

SCREW

7517560

$9,44 Unit Price incl. VAT

28

BRKT-RADIATOR FILL MOUNT

5252816

9999999

Not Available

29

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

30

HOSE CLAMP

7080236

$3,14 Unit Price incl. VAT

31

FUEL LINE; 600 CM

8450040600

Not Available

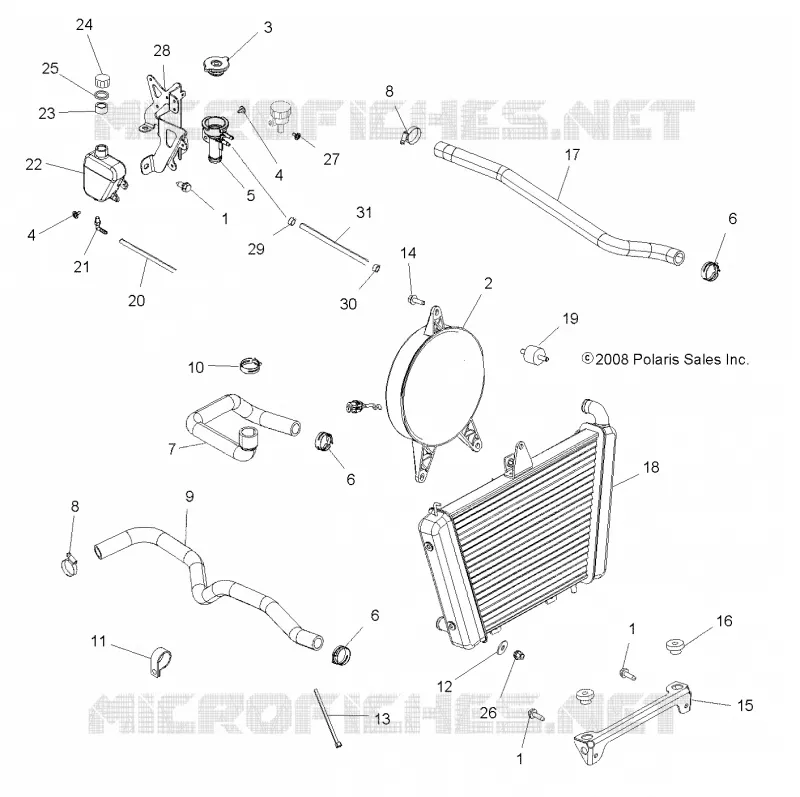

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
