1
Engine displacement
800
2
Year
2016
3
Trim
800 INDY SP
4
Parts Catalog
ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
RECOIL STARTER
ENGINE, MOUNTING
1
2
3
4
5
6
6
6
6
7
8
9
10
10
11
12
12
12
12
13
14
14
15
15
16
17
18
19
19
19
20
21
1
SHORT BLOCK KIT 800 LE
2205646
9990000
Not Available
2
NYLOK NUT; 8 MM X 1.25 MM
7547144
$6,29 Unit Price incl. VAT
3
WELD-TORQUE LIMITER INNER
1017131
$52,49 Unit Price incl. VAT
4
TORQUE LINK FIXED ASSEMBLY
1017717
9999999
Not Available
5
ASM-BRKT LINK W/STUD
1017118
$18,89 Unit Price incl. VAT
6
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$11,54 Unit Price incl. VAT
7
SCR-HXBH-M8X1.25X20 TX W/PATCH
7519648
$7,34 Unit Price incl. VAT
8
SCR-SH-M10X1.5X25 ZOD
7519119
$6,29 Unit Price incl. VAT
9
TORQUE ENGINE LIMITER
3022281
$89,24 Unit Price incl. VAT
10
ENGINE STRAP; LEFT; MACHINED
5137947
$141,74 Unit Price incl. VAT
10
ENGINE STRAP; RIGHT; MACHINED
5137948
$141,74 Unit Price incl. VAT
11
ENGINE MOUNT; REAR; PTO
3022410
$120,74 Unit Price incl. VAT
12
SOCKET HEAD SCREW 10 MM X 1.5 MM X 50 MM
7519334
$9,44 Unit Price incl. VAT
13
HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM
7518644
$9,44 Unit Price incl. VAT
14
SCREW
7516823
$5,76 Unit Price incl. VAT
15
ENGINE MOUNT
3022408
$120,74 Unit Price incl. VAT
16
ENGINE MOUNT W/ CLINCH NUT ASM FRONT
1017778
9999999
Not Available
17
SCR-M8X1.25X25 8.8 SH ZOD P30
7519010
$7,34 Unit Price incl. VAT
18
BASE ENGINE MOUNT; REAR; MACHINED
5137116
$89,24 Unit Price incl. VAT
19
ENGINE MOUNT INSERT RAD
3022409
$62,99 Unit Price incl. VAT
20
ENGINE MOUNT WITH CLINCH NUT ASSEMBLY
1019584
$120,74 Unit Price incl. VAT
21
ENGINE MOUNT INSERT
3022426
$62,99 Unit Price incl. VAT

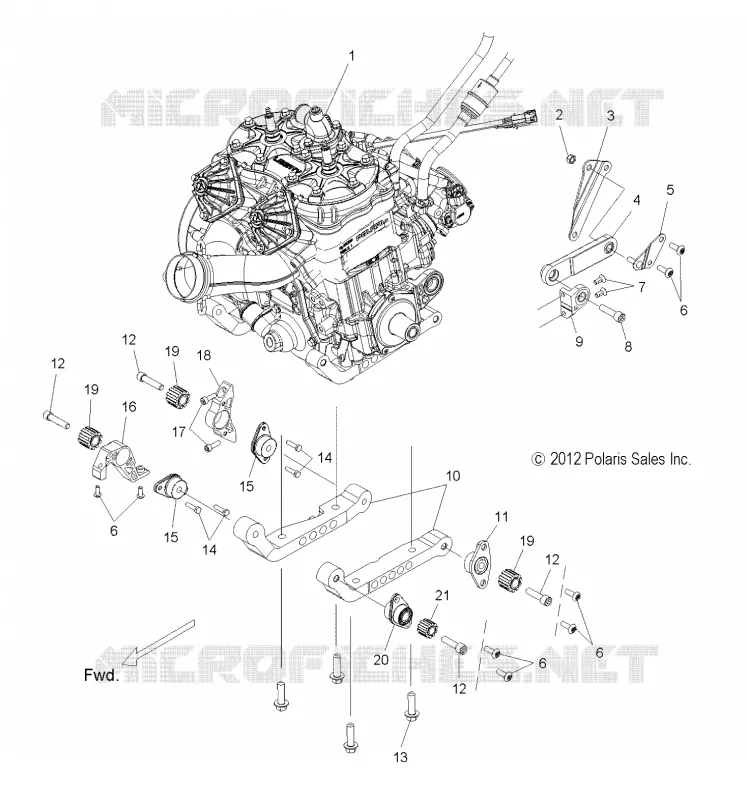

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
