ENGINE, PISTON CRANKSHAFT
5
Parts Diagram
Parts Catalog
OIL PUMP AND LINES
by
STARTER MOTOR
ENGINE, PISTON CRANKSHAFT
-
7
8
8
8
9
10
11
-
CRANKSHAFT 3090347
2205649
9999999
Not Available
1
PISTON RINGS KIT; 800 LE
2205177
9999999
Not Available
2
CIRCLIP-PISTON 22MM X 1.5
3021840
3022830
$10,49 Unit Price incl. VAT
3
PISTON KIT
2206163
2208214
$431,54 Unit Price incl. VAT
4
CON ROD ASSEMBLY KIT
2204622
9999999
Not Available
5
WRIST PIN BEARING
3514357
$40,94 Unit Price incl. VAT
6
WOODRUFF KEY
7721117
$47,24 Unit Price incl. VAT
7
DOUBLE ROW BALL BEARING; 35 X 72 X 36.5
3514499
3514530
$182,69 Unit Price incl. VAT
8
BALL BEARING
3090284
9999999
Not Available
8
RING-SNAP(6207 BRNG 1.89W)FJ
3090261
9999999
Not Available
8
BALL BEARING 35 X 72 X 20
3090283
9999999
Not Available
9
GEAR-PUMPDRIVE CHN-CR
5138548
9999999
Not Available
10
BEARING-BALL 35X72X48 TIR PC
3514908
3515098
$149,09 Unit Price incl. VAT
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

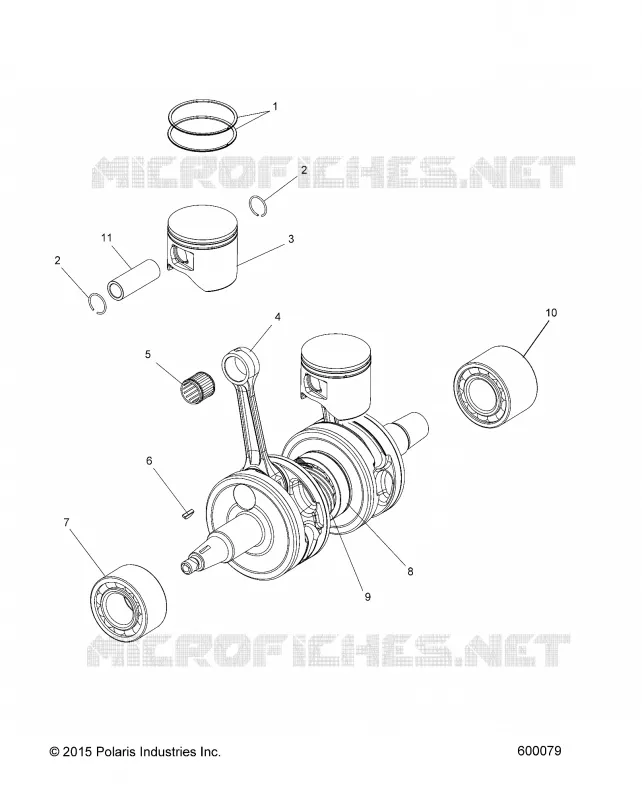

Find the detailed ENGINE, PISTON CRANKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
