1
Engine displacement
800
2
Year
2016
3
Trim
800 INDY SP
4
Parts Catalog
DRIVE TRAIN, CHAINCASE
5
Parts Diagram
Parts Catalog
BODYWORK
by
DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT
DRIVE TRAIN, CHAINCASE
1
2
3
4
5
6
1
1
1
2
3
4
5
6
7
7
8
8
9
9
10
11
12
13
13
14
15
16
17
18
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
1
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
2
CHAINCASE; MACHINED; 191.26 MM
5138552
9999999
Not Available
3
VENT TUBE; .155 X .75; DIA
5334764
$62,99 Unit Price incl. VAT
4
CHAIN TIGHTENER ASSEMBLY
1332427
$135,44 Unit Price incl. VAT
5
NUT
7547017
$10,49 Unit Price incl. VAT
6
SCR-HH-M10X1.5X70 8.8 ZOD BNC
7519587
$7,34 Unit Price incl. VAT
7
BALL BEARING #6205
3514309
3515910
$30,23 Unit Price incl. VAT
8
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
9
SPROCKET 22 TOOTH
3221098
$73,49 Unit Price incl. VAT
9
SPROCKET 23 TOOTH
3221099
$83,99 Unit Price incl. VAT
10
CHAINCASE COVER GASKET
5813295
$62,99 Unit Price incl. VAT
11
CHAINCASE SLEEVE
5137587
$13,64 Unit Price incl. VAT
12
CHAINCASE COVER ASSEMBLY; 191.26 MM
1332659
$220,49 Unit Price incl. VAT
13
SCR-M6X1.0X30 8.8 HXFL ZOD
7518993
$4,19 Unit Price incl. VAT
14
BALL BEARING
3514643
$40,94 Unit Price incl. VAT
15
SLEEVE-SEAL
5136533
5140953
$47,24 Unit Price incl. VAT
16
WASHER .406 X 1.25 X .125
7556130
$11,54 Unit Price incl. VAT
17
HEX HEAD SCREW; 10 MM X 1.25 MM X 20 MM
7519004
$7,34 Unit Price incl. VAT
18
SPROCKET 40 TOOTH
3222099
3225069
$73,49 Unit Price incl. VAT
18
SPKT 39T 3/4W 15T HYVO PM
3222108
3225070
$89,24 Unit Price incl. VAT
19
HYVO CHAIN
3221110
$262,49 Unit Price incl. VAT
20
DOWEL HOL M9X10(10)
7663007
$7,34 Unit Price incl. VAT
21
PLUG-MAGNETIC M14X1.25
7052458
7052674
$36,74 Unit Price incl. VAT
22
WASHER-THREAD SEAL;3/8-16-UNC
7556340
$6,29 Unit Price incl. VAT
23
SCR-TXTH M8X1.25X35 8.8ZOD P80
7519049
$13,64 Unit Price incl. VAT
24
SCR-M8X1.25X30 8.8 TR/TX ZOD
7518953
$3,14 Unit Price incl. VAT
25
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
26
NUT-HEX-M6X1.0 8 ZOD NYL
7547505
$4,19 Unit Price incl. VAT
27
WASHER-6.2X14.25X2 ZC
7556588
$4,19 Unit Price incl. VAT
28
FUEL LINE; 3 MM X 7 MM
8450061600
Not Available
29
BOLT WITH PATCH; 10 MM X 1.25 MM X 25 MM
7518760
$17,84 Unit Price incl. VAT
30
WASHER-0.75X.400X.125 FL-Y
7556556
$7,34 Unit Price incl. VAT
31
O-RING 20.30 MM X 2.62 MM
5413563
$3,14 Unit Price incl. VAT
32
WAVE WASHER
7556063
$5,76 Unit Price incl. VAT
33
WSHR-10.4X28.58X2.4 ZOD
7556563
$6,29 Unit Price incl. VAT

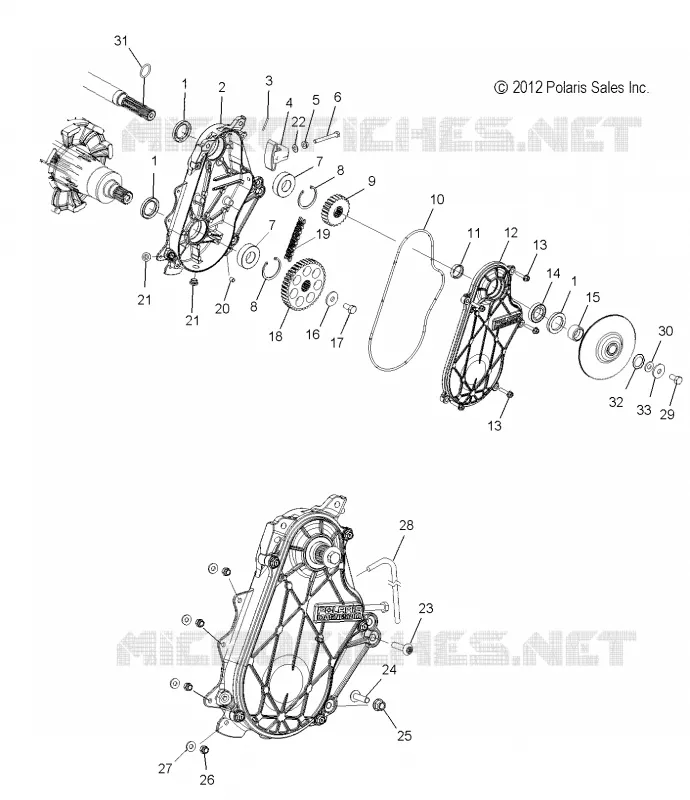

Find the detailed DRIVE TRAIN, CHAINCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
