Parts Catalog
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
5
Parts Diagram
Parts Catalog
WINDSHIELD
by
DRIVE TRAIN, CLUTCH, PRIMARY
CHASSIS, CHASSIS ASM. AND OVER STRUCTURE
1
TUBULAR FRAME ASSEMBLY; FRONT
1019548
9999999
Not Available
2
BULB SEAL .375 350 CM
5521697350
Not Available
3
SCR-HXFL-M8X1.25X50 DP ZODP30
7519245
$7,34 Unit Price incl. VAT
4
TUBE CAST SPACER
5632200
$26,24 Unit Price incl. VAT
5
ASM-FRAME TUBULAR REAR
1018183
9999999
Not Available
6
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
7
BOLT-M6X1.0X20 HXFLG OLIVE D
7518613
$7,34 Unit Price incl. VAT
8
BRKT-FUEL TANK
5254367
9999999
Not Available
9
PAD-5X5CM
5813593
$8,39 Unit Price incl. VAT
10
STUD PLATE ASSEMBLY
1018776
$27,29 Unit Price incl. VAT
11
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
12
PAD-7.6X41CM
5813752
9999999
Not Available
13
ASM-TUNNEL 121 CONV NAT
1019547309
Not Available
13
ASM-TUNNEL 121 CONVMID BLUE
1019547469
Not Available
13
KIT-CHSSS CONV 121 W/CC;M BLUE
2205107469
Not Available
13
KIT-CHASSIS CONV 121 W/CC
2205107309
Not Available
14
RIVET
7661637
$2,09 Unit Price incl. VAT
15
TUNNEL GRIPPER; RIGHT
5137694
$404,24 Unit Price incl. VAT
15
TUNNEL GRIPPER; LEFT
5137693
$404,24 Unit Price incl. VAT
16
HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM
7519243
$7,34 Unit Price incl. VAT
17
PROTECTR-TNNL 121 W/CUTOUT NAT
5522105309
Not Available
17
BOLT-M6X1.0X20 PH/TX-OLIVE D
7518616
$2,09 Unit Price incl. VAT
17
BLOCK-STUD PROTECTION
5138383
$52,49 Unit Price incl. VAT

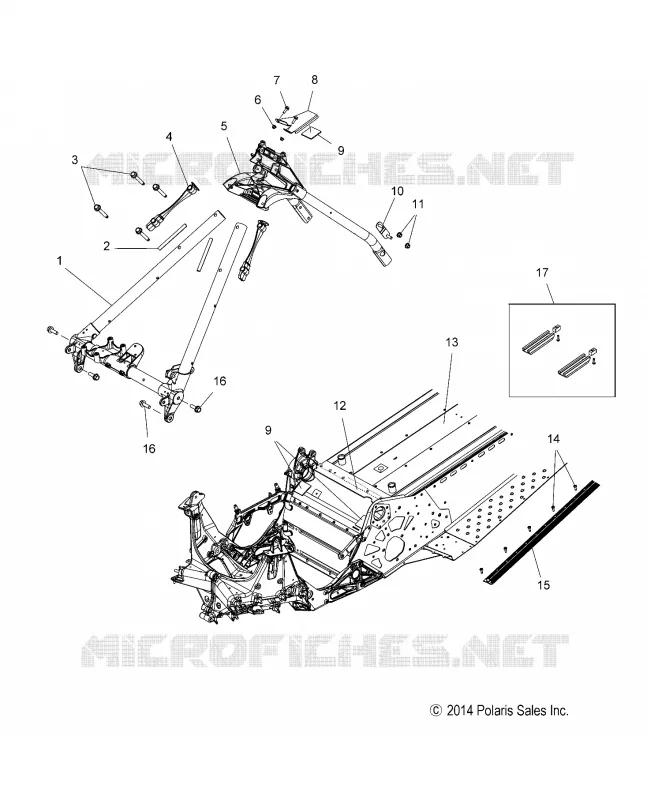

Find the detailed CHASSIS, CHASSIS ASM. AND OVER STRUCTURE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
