Engine displacement
800
2
Year
2016
3
Trim
RANGER 800 6X6
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE MOUNTING
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE INTERNAL
by
DRIVE TRAIN, MAIN GEARCASE OUTPUT SHAFT
DRIVE TRAIN, MAIN GEARCASE MOUNTING
1
2
3
4
5
6
7
8
8
8
9
10
11
12
13
14
1
HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM
7518558
$7,34 Unit Price incl. VAT
2
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
3
BOLT-M10X1.25X70 HXFLG-OLIVE D
7518561
$13,64 Unit Price incl. VAT
4
MAIN GEARCASE ASSEMBLY; 6 X 6
1332978
9999999
Not Available
5
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
6
FUEL LINE; 1/4 ID
84500031525
Not Available
7
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
8
SCR-M10X1.25X20 HXFL ZOD
7519037
$7,34 Unit Price incl. VAT
9
BRKT-TRANNY MNT;REAR
5253893
9999999
Not Available
10
NUT
3234043
9999999
Not Available
11
BRKT-TRANSMISSION MNT
5252611
9999999
Not Available
12
SCREW
3234042
$13,64 Unit Price incl. VAT
13
WELD-ENG/TRANS MNT
1015065329
Not Available
14
EDGE TRIM; 6 FT; BLACK
5521131
9999999
Not Available

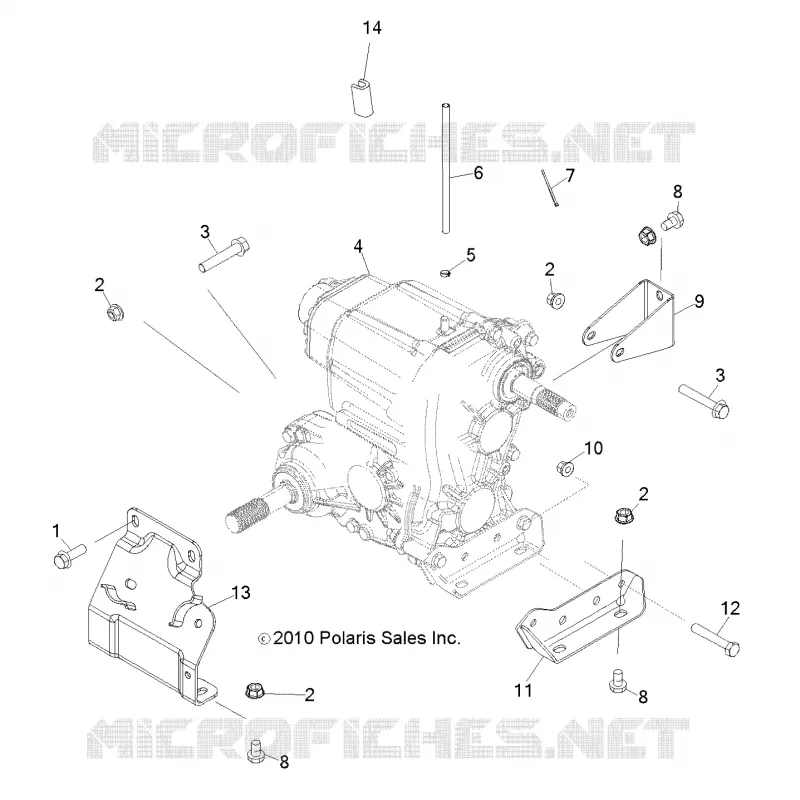

Find the detailed DRIVE TRAIN, MAIN GEARCASE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
