1
Engine displacement
800
2
Year
2016
3
Trim
RANGER 800 6X6
4
Parts Catalog
THROTTLE BODY AND VALVE COVER
5
Parts Diagram
Parts Catalog
OIL PUMP AND WATER PUMP
by
THROTTLE PEDAL
THROTTLE BODY AND VALVE COVER
1
1
2
3
4
5
6
7
8
9
10
10
10
10
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
1
HEX FLANGE SCREW; 6 MM X 1.0 MM X 20 MM
7519224
$7,34 Unit Price incl. VAT
2
VALVE COVER
5137292
9999999
Not Available
3
REED W/ GASKET ASSEMBLY
3021352
$62,99 Unit Price incl. VAT
4
BOLT(1)
7516603
$19,94 Unit Price incl. VAT
5
CASE COVER; BREATHER; DIE CAST
5438320
$16,79 Unit Price incl. VAT
6
RC7YC3 SPARK PLUG
3021671
$7,34 Unit Price incl. VAT
7
THROTTLE BODY ADAPTER
5413766
$173,24 Unit Price incl. VAT
8
SCR-SH-M8X1.25X30 8.8 ZY
7519232
$7,34 Unit Price incl. VAT
9
CLAMP HOSE
7081623
$5,76 Unit Price incl. VAT
10
IDLE AIR CONTROL HARNESS KIT
2878507
$272,99 Unit Price incl. VAT
10
IDLE SPEED CONTROL (ISC) STEPPING MOTOR
3131629
$320,24 Unit Price incl. VAT
10
THROTTLE POSITION SENSOR ASSEMBLY
3131705
$367,49 Unit Price incl. VAT
10
THROTTLE BODY ASSEMBLY
1204195
$1 018,49 Unit Price incl. VAT
10
SCREW
3131628
$9,44 Unit Price incl. VAT
11
CRANK POSITION SENSOR
2410720
$220,49 Unit Price incl. VAT
12
VALVE COVER SEAL
5413874
$57,74 Unit Price incl. VAT
13
TMAP SENSOR
2411528
$178,49 Unit Price incl. VAT
14
RESTRICTOR-ORIFICE
5438719
9999999
Not Available
15
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
16
BREATHER COVER GASKET
5813659
$3,66 Unit Price incl. VAT

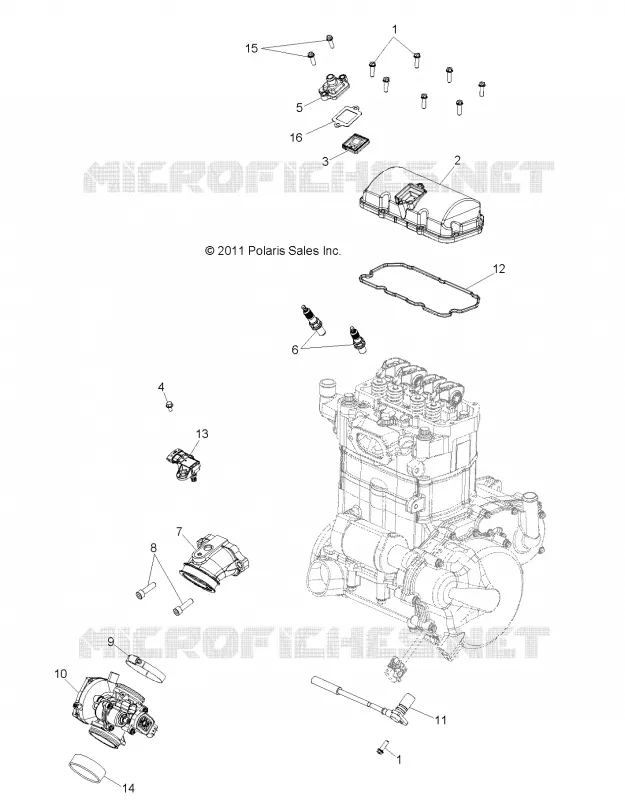

Find the detailed THROTTLE BODY AND VALVE COVER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
