Engine displacement
800
2
Year
2016
3
Trim
RANGER 800 6X6
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
by
ENGINE, FUEL INJECTOR
COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
19
20
21
22
23
23
24
25
26
27
28
29
30
31
1
1
1
1
2
3
4
5
5
6
6
6
6
7
8
8
9
10
10
11
11
12
12
12
13
13
14
14
15
16
17
18
19
20
21
21
21
22
22
23
24
24
24
25
26
1
CLAMP-HOSE 13/16 -1 1/2
7081174
$13,64 Unit Price incl. VAT
2
HOSE-1 IN ID RAD INLET
5413953
$188,99 Unit Price incl. VAT
3
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
4
HOSE; 1 IN; RAD OUTLET
5414269
$309,74 Unit Price incl. VAT
5
CONDUIT FLEX 1.250ID
552128718
Not Available
6
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
7
GASKET
5810279
$4,19 Unit Price incl. VAT
8
CLIP-COOLANT ROUTING
5438331
9999999
Not Available
9
EDGE TRIM; 6 FT; BLACK
5521131
9999999
Not Available
10
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
11
RADIATOR-FLAT
1240720
1240721
$913,49 Unit Price incl. VAT
12
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
13
FAN ASSEMBLY;
2411732
$593,24 Unit Price incl. VAT
14
GROMMET AND INSERT ASSEMBLY
5413155
$7,34 Unit Price incl. VAT
15
SCREW
7517685
$3,14 Unit Price incl. VAT
16
VALVE-PLASTIC RAD/COOLER DRAIN
7052410
$52,49 Unit Price incl. VAT
17
HOSE-BYPASS 3/8IN
5413977
$68,24 Unit Price incl. VAT
17
SHEATH-REFLECT SLEEVE;19X53CM
845010853
Not Available
18
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
19
ENGINE INLET HOSE; 1 IN
5414285
$89,24 Unit Price incl. VAT
19
SHEATH-REFLECT SLEEVE; 28CM
845011128
Not Available
20
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
21
FUEL LINE; 1/4 ID
84500031525
Not Available
22
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
23
SCREW
7512084
$2,09 Unit Price incl. VAT
24
BRKT-SURGE TANK;BLK
5252305329
Not Available
25
SURGE TANK
5436936
$152,24 Unit Price incl. VAT
26
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
27
TEE CONNECTOR; 1 X 1 X 3/8
7052494
$17,84 Unit Price incl. VAT
28
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
29
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
30
HARDWARE CONTACTOR
TBA
Not Available
31
HOSE-RETAINER 6X6
7043718
9999999
Not Available

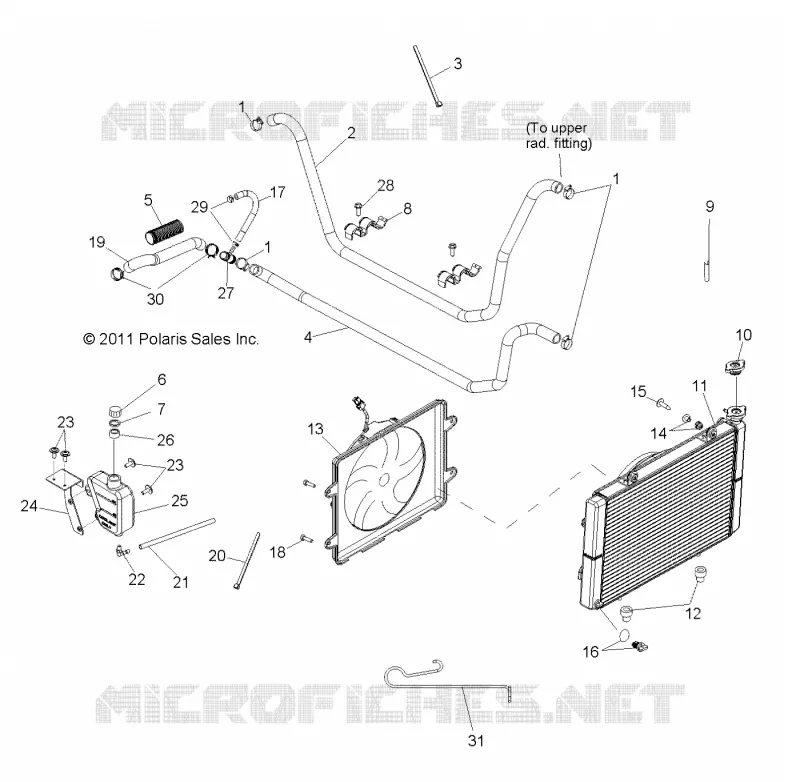

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
