Engine displacement
800
2
Year
2016
3
Trim
RANGER 800 6X6
4
Parts Catalog
DRIVE TRAIN, MID GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
by
DRIVE TRAIN, MID GEARCASE MOUNTING
DRIVE TRAIN, MID GEARCASE
-
1
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
15
16
17
17
18
19
19
20
21
22
23
24
25
26
27
1
1
1
1
2
2
3
3
3
4
5
6
7
7
8
8
8
8
8
9
10
11
12
12
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
26
26
27
1
2
3
4
5
6
7
8
9
9
10
11
12
13
13
14
15
16
17
18
19
20
-
GEARCASE ASSEMBLY; MID; 6 X 6
1332796
$4 058,24 Unit Price incl. VAT
1
SCREW
3233252
$9,44 Unit Price incl. VAT
2
DRAIN PLUG
3233805
$19,94 Unit Price incl. VAT
3
SEAL
3233803
$31,49 Unit Price incl. VAT
4
TUBE VENT
3233524
$15,74 Unit Price incl. VAT
5
COVER-OUTPUT MACH
3233982
9999999
Not Available
6
SHIM; 3.1 X 2.5
3233581
$73,49 Unit Price incl. VAT
7
BALL BEARING
3233268
$88,19 Unit Price incl. VAT
8
RING GEAR; 37T; MACHINED
3233985
9999999
Not Available
9
OUTPUT SHAFT
3234303
9999999
Not Available
10
BALL BEARING; 30 X 42 X 7
3233806
$60,89 Unit Price incl. VAT
11
SPRING-WAVE
3233987
9999999
Not Available
12
O-RING; -168
3233988
$25,19 Unit Price incl. VAT
13
KNOCK PIPE
3233529
9999999
Not Available
14
TRIPLE LIP SEAL
3233788
$57,74 Unit Price incl. VAT
15
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
16
THRUST WASHER-1.007X1.542X.063
3234050
9999999
Not Available
17
GARLOCK BUSHING
3233989
$52,49 Unit Price incl. VAT
18
GEARCASE-RII MID MACH
3233983
9999999
Not Available
19
SPRING RING
1332446
$14,69 Unit Price incl. VAT
20
BUSHING
3233292
9999999
Not Available
21
PINIONT; 10T; MACHINED
3233990
9999999
Not Available
22
GEAR-26T OUTPUT
3233991
9999999
Not Available
23
BALL BEARING
3233589
$101,84 Unit Price incl. VAT
24
GEAR-26T INPUT
3233993
9999999
Not Available
25
OUTPUT THRU SHAFT
3233992
9999999
Not Available
26
TRIPLE LIP SEAL
3233785
$36,74 Unit Price incl. VAT
27
COVER-INPUT MACH
3233984
9999999
Not Available

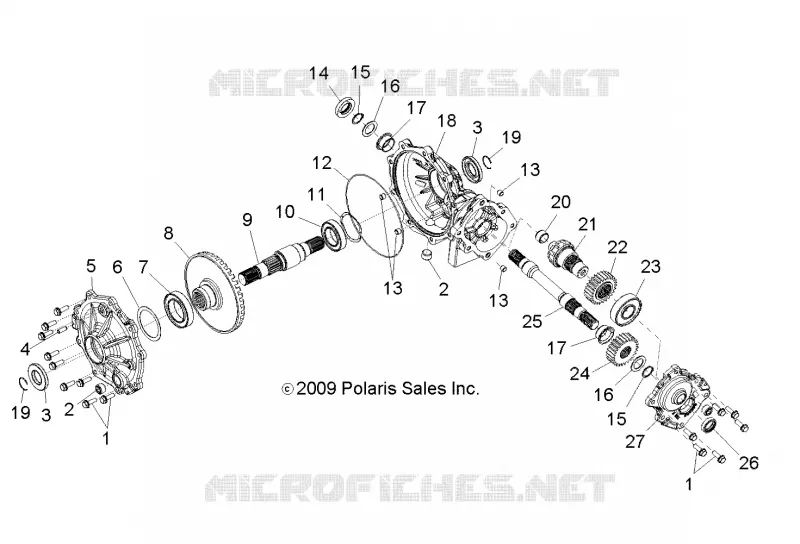

Find the detailed DRIVE TRAIN, MID GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
