CRANKSHAFT PISTON SL 650 B954058 (4930483048B014)
5
Parts Diagram
Parts Catalog
WATER INLET SL 650 B954058 (4930483048B009)
by
CARBURETOR SL 650 B954058 (4930483048C001)
CRANKSHAFT PISTON SL 650 B954058 (4930483048B014)
19
19
20
21
22
1
PISTON PIN CLIP
3083839
9999999
Not Available
2
RING PISTON .020 O/S (2)
3083359
9999999
Not Available
2
RING PISTON .10 O/S
3083358
9999999
Not Available
2
RING PISTON
3083349
9999999
Not Available
3
SETPISTON.020"/.50MM O/S
3240093
9999999
Not Available
3
SET PISTON .010/.25MM O/S
3240092
9999999
Not Available
3
PISTON
3240091
9999999
Not Available
4
PIN PISTON
3083849
9999999
Not Available
5
CRANKPIN SPACER
3083277
9999999
Not Available
6
BEARING SMALL END
3083216
3515064
$25,71 Unit Price incl. VAT
7
CONNECTING ROD
3240083
9999999
Not Available
8
BEARING-LARGE END
3083255
9999999
Not Available
9
PIN; CRANK
3240085
9999999
Not Available
10
PIN-CRANK 2
3083254
9999999
Not Available
11
CRANKSHAFT 3
3240082
9999999
Not Available
12
CRANKSHAFT 2
3240081
9999999
Not Available
13
CRANKSHAFT CTR.
3240079
9999999
Not Available
13
CRANKSHAFT MAG SIDE
3240080
Not Available
14
CRANKSHAFT (SL750&650)
3240184
9999999
Not Available
14
CRANKSHAFT 1
3240167
9999999
Not Available
14
CRANKSHAFT ASM.
3240166
9999999
Not Available
15
KEY; WOODRUFF
3240168
9999999
Not Available
16
RING WEAR
3240089
Not Available
17
O-RING
3240090
9999999
Not Available
18
BEARING BALL
3084545
9999999
Not Available
19
BEARING BALL
3084544
9999999
Not Available
20
SPACER; .6
3240088
9999999
Not Available
21
WASHER
3084457
9999999
Not Available
22
NUT
3083093
7547895
$7,34 Unit Price incl. VAT

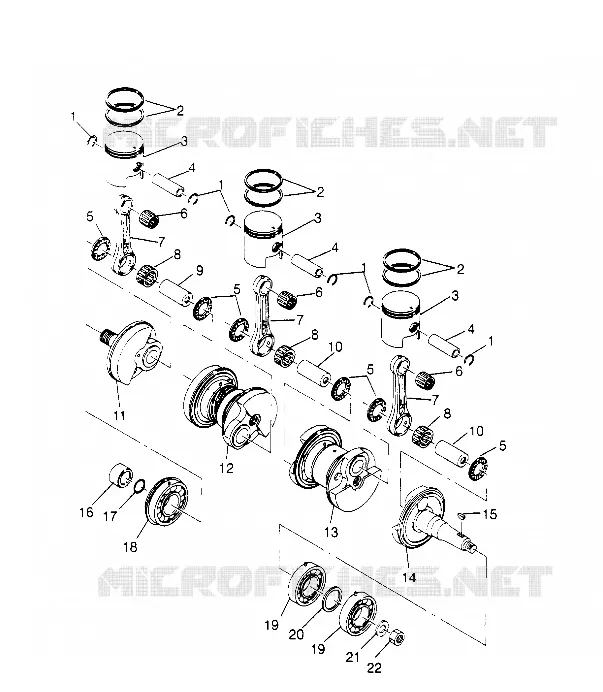

Find the detailed CRANKSHAFT PISTON SL 650 B954058 (4930483048B014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
