1
Engine displacement
650
2
Year
1995
3
Trim
SL 650 - B954058
4
Parts Catalog
HULL BODYWORK SL 650 B954058 (4930483048A005)
5
Parts Diagram
Parts Catalog
by
HULL BODYWORK SL 650 B954058 (4930483048A006)
HULL BODYWORK SL 650 B954058 (4930483048A005)
24
25
25
26
26
27
28
29
29
30
31
32
33
34
35
36
37
38
39
40
1
HANDLE GRAB PURPLE
5431729194
Not Available
2
SCREW S.S.(10)
7516805
9999999
Not Available
3
WASHER LOCK
7552613
9999999
Not Available
4
WASHER
7555882
9999999
Not Available
5
BUMPER LH R. PUR.VEL.
5431561194
Not Available
6
PLUG R.BUMP PUR.VEL.
5431994194
Not Available
7
RIVET(10)
7621480
9999999
Not Available
8
SCREW
7517103
9999999
Not Available
9
WASHER; FLAT; S.S.(10)
7555839
9999999
Not Available
10
BRKT SEPARATOR WATER
5431825
Not Available
11
SCREW S.S.(10)
7515141
9999999
Not Available
12
NUT HEX S.S.
7542454
9999999
Not Available
13
WASHER; LOCK; S.S.
7552607
9999999
Not Available
14
WASHER FLAT
7555841
9999999
Not Available
15
BOLT SPECIAL SS.
7515518
9999999
Not Available
16
CLIP; XMASTREE(10)
7080514
9999999
Not Available
17
RAIL RUB SIDE PURP.VELVET
5521309194
Not Available
18
GROMMET
5410720
9999999
Not Available
19
BUMPER CORNER
5431740
9999999
Not Available
20
POD STRG NOTCH RUB.RED
5432146182
Not Available
21
GROMMET VENT
5410682
9999999
Not Available
22
DECAL;RECOMMENDED OIL
7074959
9999999
Not Available
23
CLIP-DART PURP.VELVET
7670084194
Not Available
24
BUMPERFRPURP.VEL.
5410945194
Not Available
25
CHANNEL; U
5432154
9999999
Not Available
26
DESC NOT_AVAILABLE
9810348
Not Available
27
GROMMET BOW EYE PURP.VIOLET
5431950194
Not Available
28
NUT;BOW EYE;PURP.VIOLET
5431951194
Not Available
29
FASTENER2PC
7621506
9999999
Not Available
30
SPACER FR.BUMPER
5431474
9999999
Not Available
31
RIVET(50)
7621511
9999999
Not Available
32
BOLT
7515127
9999999
Not Available
33
WASHER; LOCK; S.S.
7555838
9999999
Not Available
34
WASHER S.S.(10)
7555891
9999999
Not Available
35
PAD FRT PURP.VEL.
5811089194
Not Available
36
BUMPER DECK
5431741
9999999
Not Available
37
PAD;CTR;PURP.VEL.
5811088194
Not Available
38
BUMPER RH R. PUR.VEL.
5431562194
Not Available
39
PAD R.FOOTWELL PURP.VELVET
5810549194
Not Available
40
RAIL RUB REAR PURP.VELVET
5521310194
Not Available

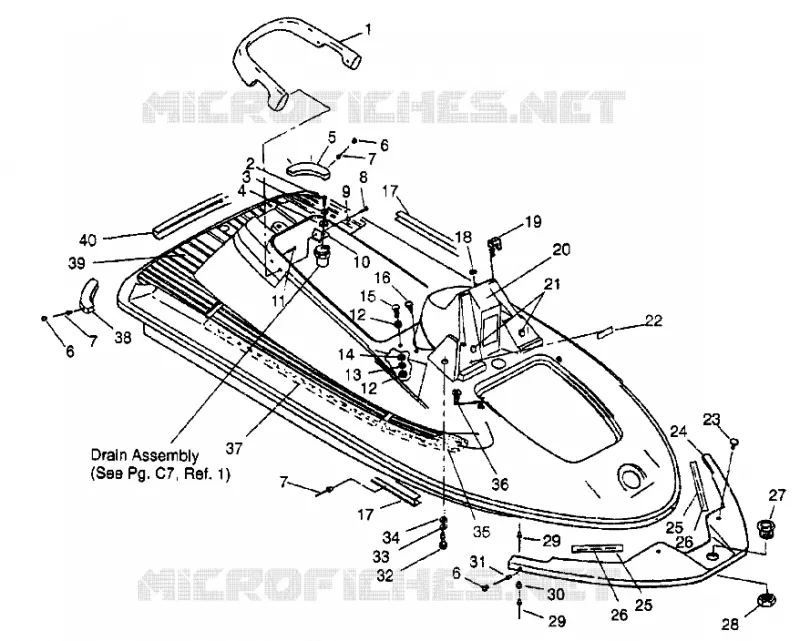

Find the detailed HULL BODYWORK SL 650 B954058 (4930483048A005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
