1
Engine displacement
650
2
Year
1995
3
Trim
SL 650 - B954058
4
Parts Catalog
PROPULSION SL 650 B954058 (4930483048B002)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING SL 650 B954058 (4930483048B001)
by
DRIVE SYSTEM SL 650 B954058 (4930483048B003)
PROPULSION SL 650 B954058 (4930483048B002)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
17
18
19
19
20
21
22
23
24
25
26
26
27
28
29
30
31
32
33
1
BOLT S.S.
7515366
9999999
Not Available
2
COLLAR
5130938
9999999
Not Available
3
BRG STRG.NOZZLE
5431518
9999999
Not Available
4
NOZZLE STRG.
5131048
9999999
Not Available
5
NOZZLE PUMP
1350008
Not Available
6
BOLT
7515377
9999999
Not Available
7
SCREW S.S. ALLEN(10)
7512090
9999999
Not Available
8
CONE PUMP
5431519
9999999
Not Available
9
O-RING(10)
5410819
9999999
Not Available
10
SHAFT; STUB
5020697
9999999
Not Available
11
TUBE SIPHON BILGE
5010293
9999999
Not Available
12
SCREEN ENG.INLET
5431523
9999999
Not Available
13
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
14
HOSE WATER
8450054100
Not Available
15
O-RING(10)
5410818
9999999
Not Available
16
O-RING(10)
5410817
9999999
Not Available
17
BEARING
3514008
9999999
Not Available
18
STATOR PUMP
5130983
9999999
Not Available
19
O RING;(10)
5410735
9999999
Not Available
20
PIPE WATER ENGINE
5431655
Not Available
21
SPACER
5010294
9999999
Not Available
22
SEAL BRG STATOR
3610043
9999999
Not Available
23
SPACER IMPELLER
5010295
9999999
Not Available
24
IMPELLER 94-650
5131056
Not Available
25
HOUSING PUMP ( 94)
5130982
9999999
Not Available
26
NUT HEX S.S.(10)
7542455
9999999
Not Available
27
WASHER FLAT
7555841
9999999
Not Available
28
STUDMTG.PUMP
5020804
5020880
Not Available
29
WASHER FLAT S.S.(10)
7555853
9999999
Not Available
30
SEAL SIPHON TUBE
5411016
9999999
Not Available
31
PIPE WATER BILGE
5020835
9999999
Not Available
32
ANODE-ZINC
5630598
9999999
Not Available
33
SCREW(10)
7522019
9999999
Not Available

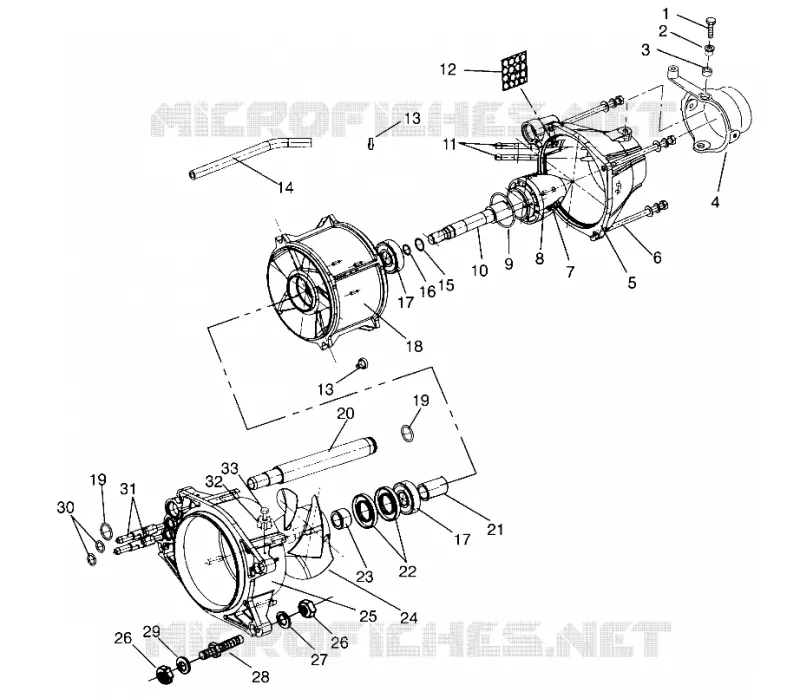

Find the detailed PROPULSION SL 650 B954058 (4930483048B002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
