1
Engine displacement
650
2
Year
1995
3
Trim
SL 650 - B954058
4
Parts Catalog
STARTING MOTOR ASSEMBLY SL 650 B954058 (4930483048C005)
5
Parts Diagram
Parts Catalog
CYLINDER MANIFOLD SL 650 B954058 (4930483048B013)
by
FUEL PUMP ASSEMBLY SL 650 B954058 (4930483048C006)
STARTING MOTOR ASSEMBLY SL 650 B954058 (4930483048C005)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
22
22
22
22
22
22
22
22
1
BOLT; THROUGH
3240113
9999999
Not Available
2
BOLT FLANGE
3240062
9999999
Not Available
3
BRUSH COMPL.
3240115
9999999
Not Available
4
SPRING BRUSH
3240111
9999999
Not Available
5
O-RING
3084408
9999999
Not Available
6
WASHER(10)
3240119
9999999
Not Available
7
WASHER SPRING(10)
3240117
9999999
Not Available
8
NUT(10)
3240116
9999999
Not Available
9
RUBBER RING
3084405
9999999
Not Available
10
BRACKET ASM;REAR
3240207
9999999
Not Available
11
WASHER; THRUST(10)
3240118
9999999
Not Available
12
WASHER; THRUST
3240112
9999999
Not Available
13
ARMATURE ASM.
3240205
9999999
Not Available
14
BRACKET ASMFRONT
3240206
9999999
Not Available
15
O-RING
3240114
9999999
Not Available
16
WASHER
3083737
7556994
$6,29 Unit Price incl. VAT
17
SNAP RING
3240126
9999999
Not Available
18
STOPPER
3240125
9999999
Not Available
19
COVER
3240123
9999999
Not Available
20
SPRING
3240124
9999999
Not Available
21
GEAR ASM.
3240122
4012614
$394,79 Unit Price incl. VAT
22
MOTOR ASMSTARTER
3240110
9999999
Not Available
22
SHAFT COMPL.
3240121
9999999
Not Available
22
GEAR ASM.
3240120
4012614
$394,79 Unit Price incl. VAT

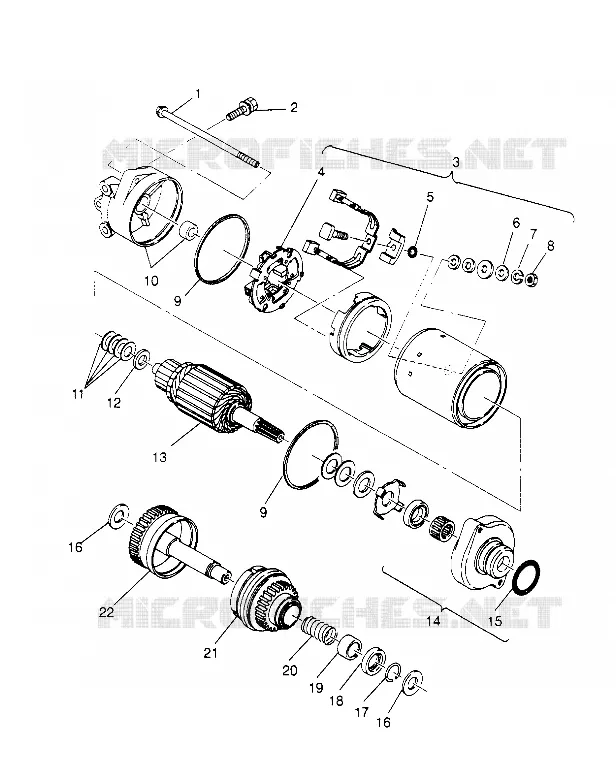

Find the detailed STARTING MOTOR ASSEMBLY SL 650 B954058 (4930483048C005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
