GEARCASE ASMMAGNUM 4WDHCR
1341184
9990000
Not Available
1
SEAL
3233097
3233788
$57,74 Unit Price incl. VAT
2
STUD
3233025
9999999
Not Available
3
BUSHING PIVOT
3233024
9999999
Not Available
4
SEAL
3233096
3233788
$57,74 Unit Price incl. VAT
5
SCREW
3233026
9999999
Not Available
6
CASE LH
3233002
9999999
Not Available
7
PIPE KNOCK
3233021
9999999
Not Available
8
SHIFTRAIL; LOW
3233022
9999999
Not Available
9
SHIFTRAIL HIGH/REV.
3233023
9999999
Not Available
10
SHAFT LOW SHIFT
3233151
9999999
Not Available
11
O-RING
3233044
9999999
Not Available
12
WASHER
3233040
9999999
Not Available
13
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
14
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
15
WASHER
3233054
9999999
Not Available
16
NUT
3233055
3233961
$5,24 Unit Price incl. VAT
17
SHAFT HIGH/REV.SHIFT
3233152
9999999
Not Available
18
PIN
3233031
9999999
Not Available
19
BRACKET
3233030
9999999
Not Available
20
BEARING
3233018
$47,24 Unit Price incl. VAT
21
SPRING
3233032
9999999
Not Available
22
SCREW
3233033
9999999
Not Available
23
SHAFT INPUT 31T HCR
3233361
9999999
Not Available
24
BEARING
3233019
$54,59 Unit Price incl. VAT
25
WASHER
3233007
9999999
Not Available
26
GEAR 33T
3233125
9999999
Not Available
27
BEARING; NEEDLE
3233009
$68,24 Unit Price incl. VAT
28
WASHER
3233010
9999999
Not Available
29
DOG ENGAGEMENT LOW
3233126
9999999
Not Available
30
SHAFTREV29THCR
3233362
9999999
Not Available
31
WASHER
3233012
9999999
Not Available
32
SILENT CHAIN
3233036
9999999
Not Available
33
RING RETAINING
3233029
9999999
Not Available
34
GEAR30THCR
3233359
9999999
Not Available
35
NEEDLE BEARING
3233017
$60,89 Unit Price incl. VAT
36
WASHER
3233176
$17,84 Unit Price incl. VAT
37
RING RETAINING
3233177
9999999
Not Available
38
VENT
3233037
9999999
Not Available
39
DIPSTICK
3233115
9999999
Not Available
40
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
41
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
42
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
43
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
44
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
45
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
47
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
48
PLUG OIL DRAIN
3233028
9999999
Not Available
49
WASHER
3233035
9999999
Not Available
50
CASE RH
3233003
9999999
Not Available
51
OIL DEFLECTOR
3233043
9999999
Not Available
52
DOG ENGAGEMENT HI/REV.
3233128
9999999
Not Available
53
BEARING
3233020
$80,84 Unit Price incl. VAT
54
NEEDLE BEARING
3233014
$74,54 Unit Price incl. VAT
55
SPROCKET 24T
3233127
9999999
Not Available
56
SHAFT OUTPUT
3233150
9999999
Not Available
57
GEAR O/P 100T HCR
3233360
9999999
Not Available

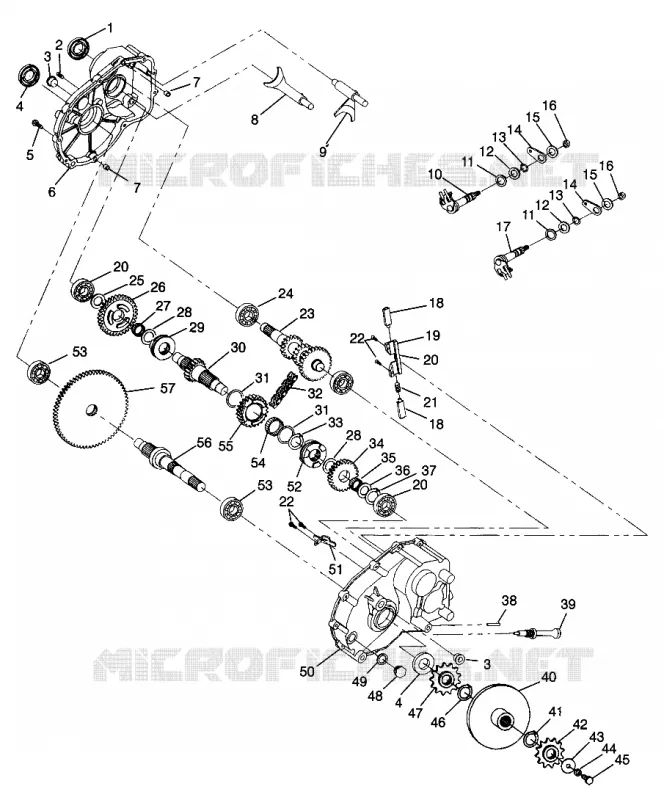

Find the detailed GEARCASE MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605C009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
