1
Engine displacement
300
2
Year
1994
3
Trim
300 4X4 - W948130
4
Parts Catalog
RECOIL STARTER 4X4 300 W948130 (4926762676D002)
5
Parts Diagram
Parts Catalog
STARTING MOTOR 4X4 300 W948130 (4926762676D001)
by
FAN ASSEMBLY
RECOIL STARTER 4X4 300 W948130 (4926762676D002)
1
2
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
22
23
1
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
SPIRAL SPRING
3083185
9999999
Not Available
2
BUSHING
3084750
9999999
Not Available
3
PLUG
3083453
9999999
Not Available
4
GASKET
3082956
9999999
Not Available
5
COLLAR
3083732
9999999
Not Available
6
MOUNTING RUBBER
3083731
9999999
Not Available
7
ASM. BOLT AND WASHER
3083730
9999999
Not Available
8
STARTER ASM RECOIL Substituted by 3085082 (Incl. 1 2 8-19)
3084780
Not Available
8
STARTER RECOIL Substituted by 3084780 (Incl. 1 2 9-19)
3084781
Not Available
9
BOLT&WASHER
3084782
9999999
Not Available
10
BOLT; FLANGE
3084177
9999999
Not Available
11
STARTER BUSHING
3083669
9999999
Not Available
12
BOLT
3084751
9999999
Not Available
13
WASHER SPRING
3084752
Not Available
14
FRICTION PLATE
3084744
9999999
Not Available
15
FRICTION SPRING
3083379
9999999
Not Available
16
RETURN SPRING
3083463
9999999
Not Available
17
RATCHET
3083378
9999999
Not Available
18
CAP; KNOB
3084749
9999999
Not Available
19
TAPE; KNOB
3084748
9999999
Not Available
20
KNOB; STARTER
3084747
9999999
Not Available
21
BAND; WIRE
3084823
9999999
Not Available
22
ROPE ASM;W/HANDLE
3084745
9999999
Not Available
22
100 FT. NYLON STARTER ROPE
2870621
$47,24 Unit Price incl. VAT
23
REEL ASSEMBLY
3084822
9999999
Not Available

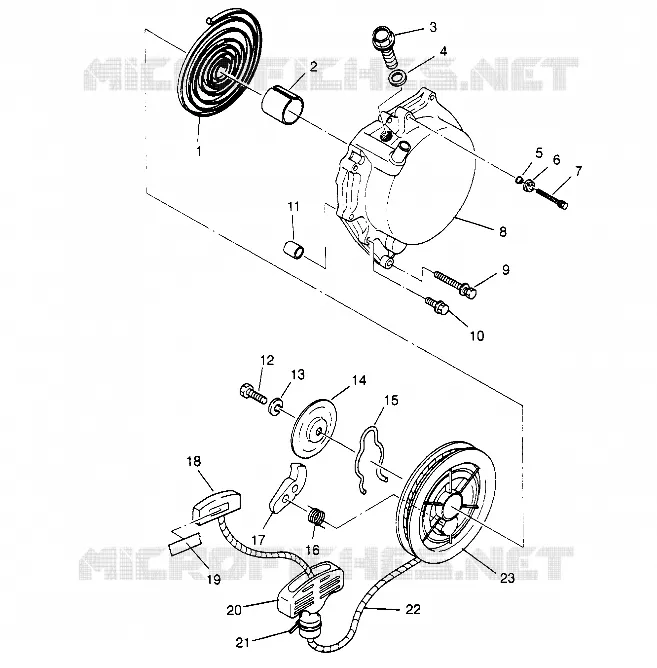

Find the detailed RECOIL STARTER 4X4 300 W948130 (4926762676D002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
