1
Engine displacement
800
2
Year
2016
3
Trim
800 AXYS PRO RMK / LE 155
4
Parts Catalog
REAR SUSPENSION TORQUE ARM
5
Parts Diagram
Parts Catalog
BATTERY AND CABLES
by
DRIVE TRAIN, CHAINCASE
REAR SUSPENSION TORQUE ARM
11
11
11
11
12
12
13
14
15
16
1
SCR-HH M10X40 10.9 ZPC P80
7519223
9999999
Not Available
2
WSHR-M10 SPRING LOC ZPC
7556558
$4,19 Unit Price incl. VAT
3
WSHR-M10.5X25X2.4 ZPC
7556559
$6,29 Unit Price incl. VAT
4
SPACER; NYLON; .985 X 1.285 X .868
5135424
$34,64 Unit Price incl. VAT
4
SCR-10-24-3/8 SOC/SET-Y
7518262
$7,34 Unit Price incl. VAT
5
WAVE WASHER
7571605
$11,54 Unit Price incl. VAT
6
BEARING
3514303
$20,99 Unit Price incl. VAT
6
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
6
BOGIE WHEEL ASSEMBLY
1590539
$89,24 Unit Price incl. VAT
7
HOLLOW SHAFT; 20.32 X 391.41
5138059
$115,49 Unit Price incl. VAT
8
TRACK ARM; REAR; BLACK
1543396329
Not Available
9
HEX NUT; 8 MM X 1.25 MM
7547480
$4,19 Unit Price incl. VAT
10
BUSHING STOCK ASSEMBLY
1823987
$27,29 Unit Price incl. VAT
11
HEX HEAD SCREW; 8 MM X 1.25 MM X 45 MM
7519097
$3,14 Unit Price incl. VAT
12
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
13
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
14
SCR-HXFL-M8X1.25X150 8.8 ZOD
7519200
$17,84 Unit Price incl. VAT
15
SHAFT 17.37 X 8.45 X 132.59
5337198
$52,49 Unit Price incl. VAT
16
SHOCK ROD WELD
1543397329
Not Available

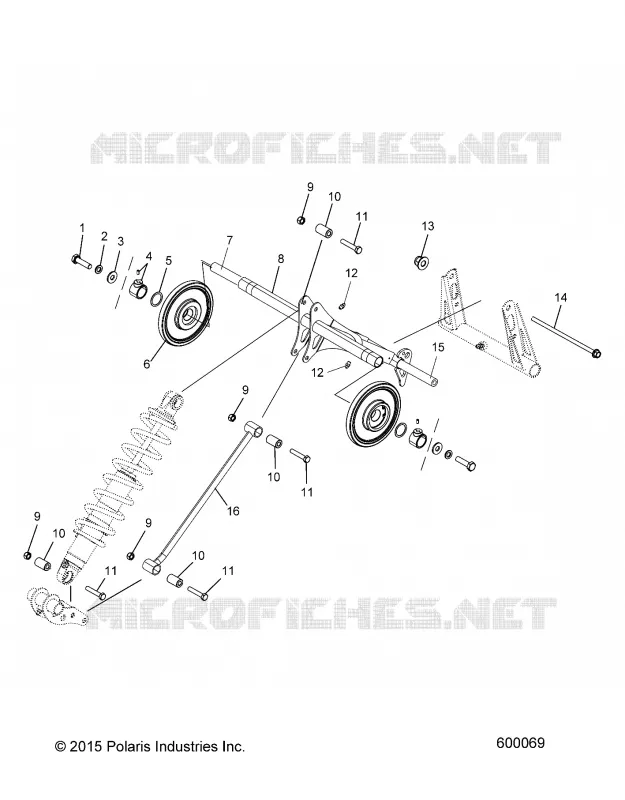

Find the detailed REAR SUSPENSION TORQUE ARM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
