IFS SHOCK
5
Parts Diagram
Parts Catalog
SIDE PANELSS
by
DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT
IFS SHOCK
-
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
-
IFS SHOCK W/ JOUNCE BUMPER WALKER EVANS
7044298
9999999
Not Available
1
PISTON-RES/PISTON-IFP (600204)
1800348
$152,24 Unit Price incl. VAT
2
CRIMP NUT 3/8 IN
1800031
$7,34 Unit Price incl. VAT
3
SLEEVE; 1.15L
1800405
$62,99 Unit Price incl. VAT
4
BUSHING
1800406
$9,44 Unit Price incl. VAT
5
NEEDLE VALVE
1800329
$62,99 Unit Price incl. VAT
6
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
7
O-RING STUD
1800215
$14,16 Unit Price incl. VAT
8
SCREW-BUTTON HEAD 8/32(10)
1800109
$6,29 Unit Price incl. VAT
9
BUMPER SHAFT; .62
1800462
$68,24 Unit Price incl. VAT
10
PISTON CONVEX
1800001
9999999
Not Available
11
END BEARING
1800040
$152,24 Unit Price incl. VAT
12
END CAP SNAP RING
1800041
$15,74 Unit Price incl. VAT
13
BEVELED SPRING RETAINER RING
1800658
$89,24 Unit Price incl. VAT
14
BODY IFS MONO 1400128
1800731
9999999
Not Available
15
O-RING RESERVOIR
1800028
$3,14 Unit Price incl. VAT
16
TEFLON WEAR BAND
1800297
$62,99 Unit Price incl. VAT
17
LOOP SHAFT W GRV (1200115)
1800540
$257,24 Unit Price incl. VAT
18
IFS SHAFT
1800541
9999999
Not Available
19
THIN WEAR BAND
1800543
$73,49 Unit Price incl. VAT
20
SEAL HEAD; SHORT
1800545
9999999
Not Available
21
SHAFT; BUSHING
1800544
$40,94 Unit Price incl. VAT
22
O-RING
1800095
$2,09 Unit Price incl. VAT
23
SEAL; U-CUP
1800294
$47,24 Unit Price incl. VAT
24
WIPER SEAL
1800295
$26,24 Unit Price incl. VAT
25
O-RING BODY
1800027
$3,66 Unit Price incl. VAT
26
ADJUSTER SPRING 1500131
1800724
$68,24 Unit Price incl. VAT
27
MATTE BLACK SPRING 10.25
7043460458
Not Available
27
SPRG-COMP IFS 10.25 100# WHT
7043460133
Not Available

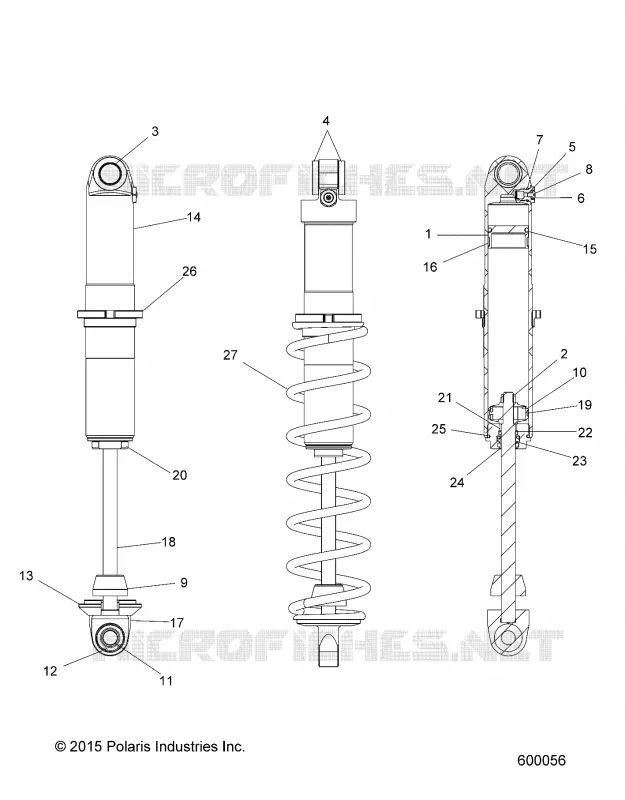

Find the detailed IFS SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
