1
Engine displacement
800
2
Year
2016
3
Trim
800 AXYS PRO RMK / LE 155
4
Parts Catalog
CYLINDER
5
Parts Diagram
Parts Catalog
STARTER MOTOR
by
DECALS, SLV/BLK, BLK/SLV OPT.
CYLINDER
1
SCREW 8 MM X 1.25 MM X 55 MM
7517533
$8,39 Unit Price incl. VAT
2
SCREW M6X1.0 X 13 SL/HX/FL-Z
7517679
$25,19 Unit Price incl. VAT
3
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
4
SCREW
7516825
$10,49 Unit Price incl. VAT
5
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
6
THERMOSTAT COVER; 6 MM; MACHINED
5137850
$62,99 Unit Price incl. VAT
7
COVER-HEAD 85 TWIN CH BP MACH
5139018
$99,74 Unit Price incl. VAT
8
O-RING
5411411
$1,56 Unit Price incl. VAT
9
GLAND SEAL
5414930
$18,89 Unit Price incl. VAT
10
CYLINDER HEAD
3022642
9999999
Not Available
11
HEX FLANGE SCREW 10MM X 1.50MM X 100MM
7518774
$11,54 Unit Price incl. VAT
12
HI TEMP O-RING; 3.664 X 3.804 X 07
5413319
$36,74 Unit Price incl. VAT
13
CYLINDER GLAND SEAL
5413288
$41,99 Unit Price incl. VAT
14
MONOBLOCK CYLINDER
3022828
$1 858,49 Unit Price incl. VAT
15
CYLINDER BASE GASKET; 800 LE
5813826
$62,99 Unit Price incl. VAT
16
HOSE-COOLANT 5/16 22CM LONG
5415236
$12,59 Unit Price incl. VAT
17
CLAMP-HOSE 17/32 GREEN
7081432
$7,34 Unit Price incl. VAT

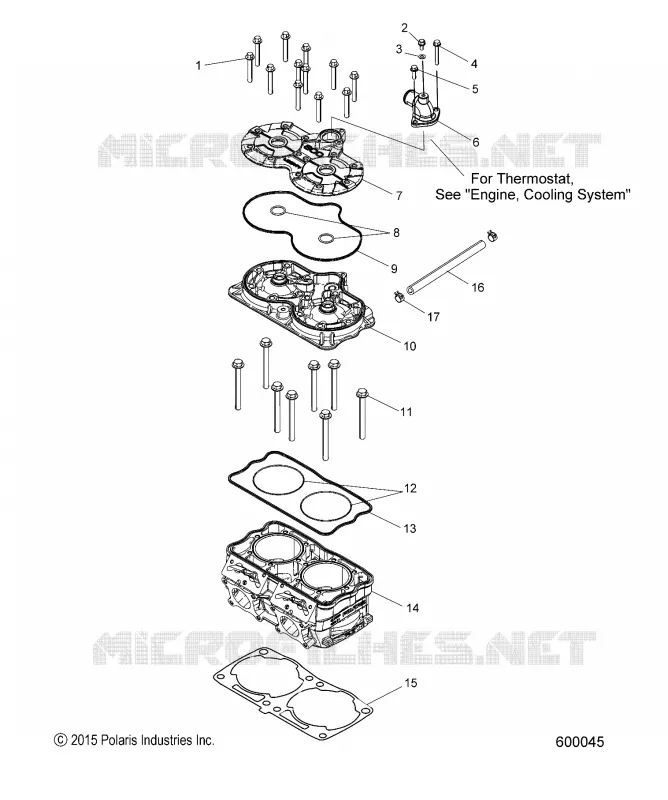

Find the detailed CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
