1
Engine displacement
800
2
Year
2016
3
Trim
800 AXYS PRO RMK / LE 155
4
Parts Catalog
STEERING, HANDLEBAR MOUNTING
5
Parts Diagram
Parts Catalog
by
ENGINE, AIR INTAKE SYSTEM
STEERING, HANDLEBAR MOUNTING
1
ASM-HANDLEBAR P/T LOW RISE
1824307
1830284
$367,49 Unit Price incl. VAT
1
ASM-HANDLEBAR P/T MID RISE
1824175
1830244
$367,49 Unit Price incl. VAT
1
ASM-HANDLEBAR P/T HIGH RISE
1824306
1830285
$367,49 Unit Price incl. VAT
2
HANDLEBAR HOOK; GLOSS BLACK
1823339070
Not Available
3
SCREW
7515138
$10,49 Unit Price incl. VAT
4
HB GRIP PRO RMK/SB ASSAULT GLOSS BLACK
5452148070
Not Available
5
SOCKET HEAD SCREW; 6 MM X 45 MM
7518931
$4,19 Unit Price incl. VAT
6
HANDLEBAR MOUNT BLOCK
5631729
$62,99 Unit Price incl. VAT
7
HANDLEBAR BLOCK
5631892
$62,99 Unit Price incl. VAT
8
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
9
STEERING POST WELD; UPPER
1824108329
Not Available
10
HEX FLANGE SCREW; 8 MM X 1.25 MM X 55 MM
7519242
$9,44 Unit Price incl. VAT
11
STEERING STRAP
5261531
$10,49 Unit Price incl. VAT
12
STEERING POST BUSHING
5451227
$7,34 Unit Price incl. VAT
13
BRUSHING SPACER
5137796
$7,34 Unit Price incl. VAT
14
K-HANDGUARD MNTS PROTAPER BLK
2881241458
Not Available
15
MOUNT-HANDGUARD BOTTOM BLK
5139932458
Not Available
16
KIT-HAND GUARD SNO BLACK
2879192
$73,49 Unit Price incl. VAT
17
STEERING STRAP
5258308
$6,29 Unit Price incl. VAT

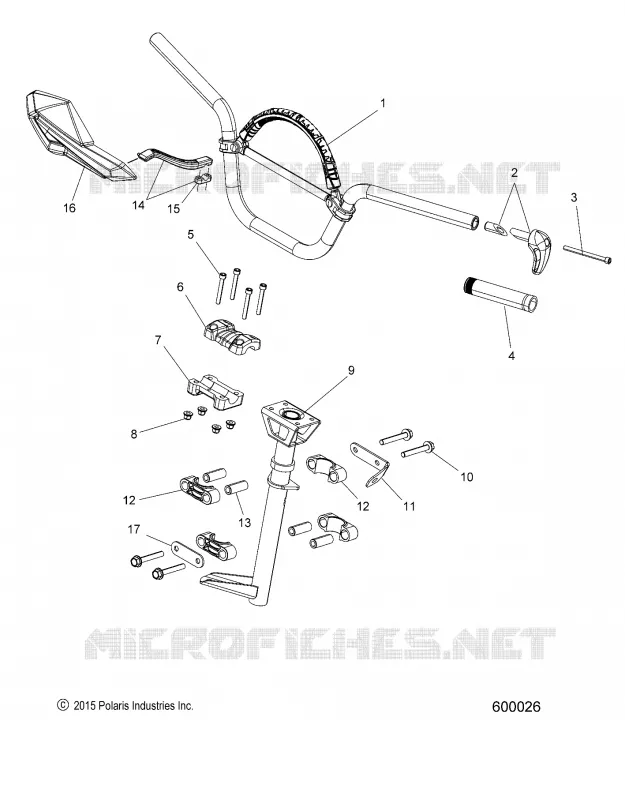

Find the detailed STEERING, HANDLEBAR MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
