1
Engine displacement
autre
2
Year
1996
3
Trim
MAGNUM 4X4 - W968144
4
Parts Catalog

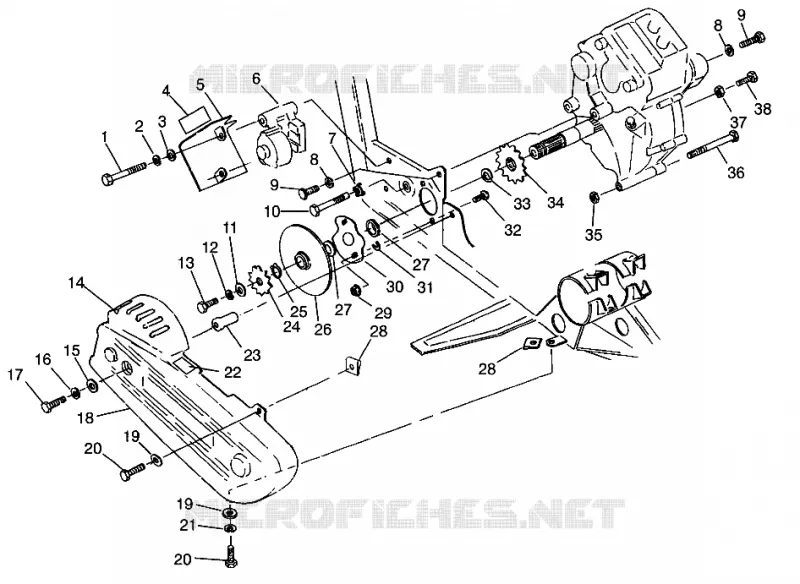

GEARCASE/BRAKE AND CHAIN COVER MOUNTING MAGNUM 4X4 W968144 AND SWEDISH MAGN (4936053605C005)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605C004)
by
REAR BRAKE MAGNUM 4X4 W968144 AND SWEDISH MAGNUM 4X4 S968144 (4936053605C006)
GEARCASE/BRAKE AND CHAIN COVER MOUNTING MAGNUM 4X4 W968144 AND SWEDISH MAGN (4936053605C005)
1
2
3
4
5
6
6
6
6
10
8
8
9
9
10
11
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
27
28
28
29
30
30
30
30
31
31
31
31
31
31
31
31
31
32
33
34
35
36
37
38
1
2
3
4
5
6
6
6
6
10
8
8
9
9
10
11
13
14
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
27
28
28
29
30
30
30
30
31
31
31
31
31
31
31
31
31
32
33
34
35
36
37
38
1
BOLT
7515345
9999999
Not Available
2
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
3
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
4
DECAL BRAKE SHIELD
7075339
Not Available
5
SHIELD R.CALIPER BLK.
5241018067
Not Available
6
CALIPER ASMR.(SCAND)
1910130
9999999
Not Available
6
CALIPER ASMR.BRAKE
1910180
9999999
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
9
BOLT
7515522
$7,34 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
13
BOLT
7515321
9999999
Not Available
14
CHAIN GUARD
5431717
9999999
Not Available
15
WASHER
7555770
7558402
$1,56 Unit Price incl. VAT
16
WASHER
7552606
9999999
Not Available
17
BOLT(10)
7515384
9999999
Not Available
18
DECAL#DEMAND-4-DRIVE#
7074892
Not Available
19
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
20
BOLT
7512269
9999999
Not Available
21
WASHER
7552605
9999999
Not Available
22
DECAL LUBRICATION
7074214
Not Available
23
SPACER CHAIN GUARD
5333254
9999999
Not Available
24
SPROCKET; 11 TOOTH
3221058
9999999
Not Available
25
SNAP RING
7710434
$7,34 Unit Price incl. VAT
26
DISC ASMBRAKE
1910177
9999999
Not Available
27
BRAKE SEAL
3610026
9999999
Not Available
28
SPEED NUT
7670060
9999999
Not Available
29
NUT FLANGE LOCK
7542449
$7,34 Unit Price incl. VAT
30
OUTPUT SHAFT BEARING ASSEMBLY
1590237
9999999
Not Available
30
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
31
SHIM; .030
5211517
9999999
Not Available
31
SHIM
5211065
9999999
Not Available
31
SPACER; .020
5210764
9999999
Not Available
32
BOLT CARRIAGE
7515484
9999999
Not Available
33
RING RETAINING
7710433
9999999
Not Available
34
SPROCKET; 12 TOOTH
3221044
$83,99 Unit Price incl. VAT
35
NUT LOCK
7542403
9999999
Not Available
36
BOLT
7515472
$4,19 Unit Price incl. VAT
37
NUT
7542404
$3,14 Unit Price incl. VAT
38
BOLT
7515485
9999999
Not Available

Find the detailed GEARCASE/BRAKE AND CHAIN COVER MOUNTING MAGNUM 4X4 W968144 AND SWEDISH MAGN (4936053605C005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
