1
Engine displacement
500
2
Year
2006
3
Trim
RANGER 500 4X4 EFI - R06RD50AC
4
Parts Catalog
FRONT STRUT
5
Parts Diagram
Parts Catalog
OIL FILTER
by
CABIN
FRONT STRUT
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
16
16
17
18
19
20
21
21
22
1
2
3
4
5
5
6
7
8
9
10
10
11
12
13
14
15
15
15
15
15
16
17
18
19
20
21
1
NUT
7547104
$2,09 Unit Price incl. VAT
2
WASHER
7555749
$2,09 Unit Price incl. VAT
3
SPACER RUBBER
5810291
$7,34 Unit Price incl. VAT
4
PIVOT BALL; TOP
5432872
$19,94 Unit Price incl. VAT
5
SPACER 1 2 20
5132062
$36,74 Unit Price incl. VAT
6
BALL BOTTOM PIVOT
5432871
$19,94 Unit Price incl. VAT
7
RETAINER SPRING
5243364
$36,74 Unit Price incl. VAT
8
COMPRESSION SPRING 13.85IN; GS BLK
7043094067
Not Available
9
MCU BUMPER; 17.8 MM
5412665
$12,59 Unit Price incl. VAT
10
FRONT STRUT
7043106
$283,49 Unit Price incl. VAT
11
WASHER
5211115
$7,34 Unit Price incl. VAT
12
CABLE CLAMP
7080367
$4,19 Unit Price incl. VAT
13
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
14
CAP SCREW
7512365
$2,09 Unit Price incl. VAT
15
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
16
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
19
INTERNAL RETAINING RING
7710507
$4,19 Unit Price incl. VAT
20
BEARING-AXLE TUBE/HUBSTRUT
3514342
3514634
$73,49 Unit Price incl. VAT
21
HUBSTRUT ASM;LH;VL
1820899
1822653
$572,24 Unit Price incl. VAT
21
HUBSTRUT ASM;RH;VL
1820901
9999999
Not Available
22
BOLT
7515339
$9,44 Unit Price incl. VAT

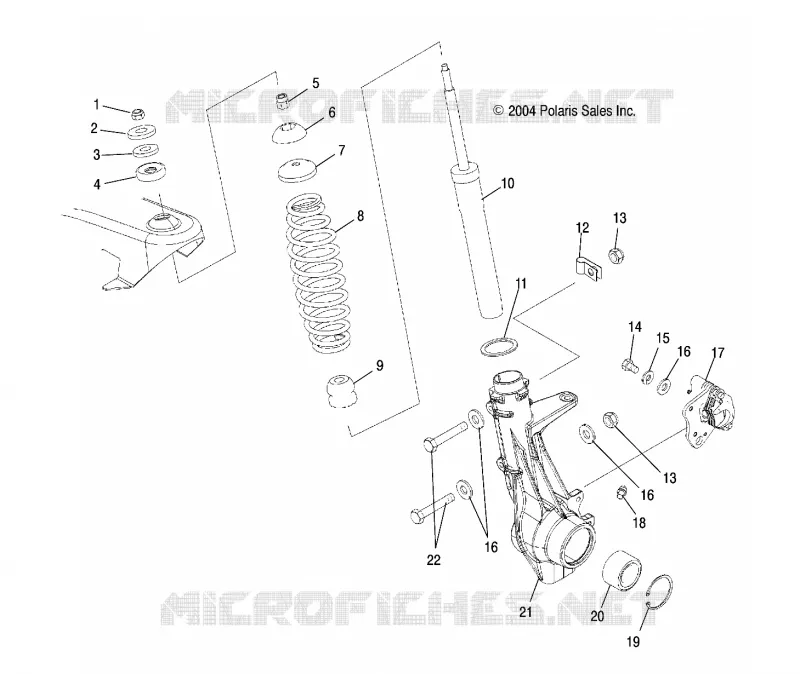

Find the detailed FRONT STRUT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
