1
Engine displacement
500
2
Year
2006
3
Trim
RANGER 500 4X4 EFI - R06RD50AC
4
Parts Catalog
HOOD
5
Parts Diagram
Parts Catalog
INSTRUMENTS CONTROLS
by
BOX MOUNTING
HOOD
1
2
2
2
3
4
4
5
5
6
6
7
8
9
10
10
11
11
12
13
14
15
15
16
17
18
19
20
21
22
22
23
23
24
24
24
24
25
25
26
27
28
29
30
31
1
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
2
SCREW
7517685
$3,14 Unit Price incl. VAT
3
HINGE ASSEMBLY
5437902
$19,94 Unit Price incl. VAT
4
HOOD-RANGER NBU SUB
5436255455
Not Available
4
HOOD-GREEN
5435703195
Not Available
5
RUBBER GROMMET; MOUNT; 25 IN.
5412504
$7,34 Unit Price incl. VAT
6
SCREW
7512026
$2,09 Unit Price incl. VAT
7
CATCH PLATE
5910119
$68,24 Unit Price incl. VAT
8
CATCH PIN
5246693
$17,84 Unit Price incl. VAT
9
GLOVEBOX SEAL
5521667
9999999
Not Available
10
COVER-GLOVEBOX EB GREEN
5434719195
Not Available
10
COVER-GLOVEBOX BLK
5434719070
Not Available
11
DASH-RANGER NBU SUB
5436254455
Not Available
11
DASH-GREEN
5435756195
Not Available
12
CUP HOLDER
5434763
$12,59 Unit Price incl. VAT
13
SCREW
7517561
$3,14 Unit Price incl. VAT
14
NUT-#10 U-TYPE AB(.025.150)
7670157
$7,34 Unit Price incl. VAT
15
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
16
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
17
BOX-STORAGE
5435922
9999999
Not Available
18
PIN
5020663
9999999
Not Available
19
LINER-HOOD
5435685
9999999
Not Available
20
DART CLIP; PLASTIC
7670090
$2,09 Unit Price incl. VAT
21
BOLT 5/8 LONG TORX PAN HEAD
7518238
$7,34 Unit Price incl. VAT
22
HEADLIGHT BRACKET
5248655
9999999
Not Available
23
SCREW
7512084
$2,09 Unit Price incl. VAT
24
HEADLIGHT BULB; 35 WATT
4011029
9999999
Not Available
24
HEADLIGHT ASSEMBLY
2410503
9999999
Not Available
25
O-RING
5410163
$3,14 Unit Price incl. VAT
26
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
27
HOOD LATCH STRAP
5410370
$47,24 Unit Price incl. VAT
28
SCREW
7517230
$2,09 Unit Price incl. VAT
29
HOOD GRILLE; GLOSS BLACK
5435728070
Not Available
30
CLIP-WIRE ADHESIVE BACK 1/2
7670134
$17,84 Unit Price incl. VAT
31
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT

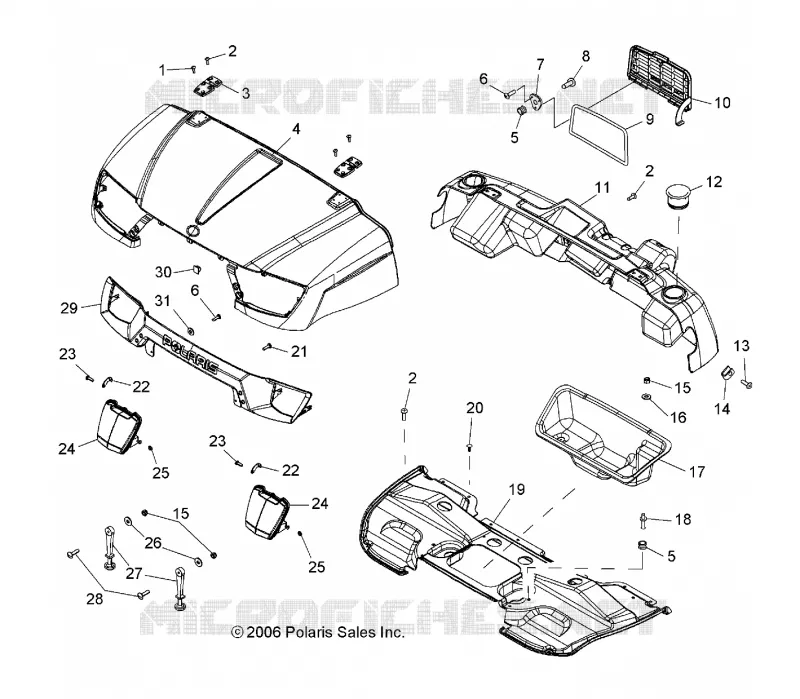

Find the detailed HOOD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
