RANGER 500 4X4 EFI - R06RD50AC
4
Parts Catalog
DRIVEN CLUTCH
5
Parts Diagram
Parts Catalog
BRAKE PEDAL
by
GEAR SELECTOR
DRIVEN CLUTCH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
1
ORV DRIVE BELT
3211077
$107,93 Unit Price incl. VAT
2
WASHER .906 X 1.38 X .060 IN
7556120
$2,09 Unit Price incl. VAT
3
DRIVE CLUTCH ASSEMBLY; 40 DEG; BLACK
1321848
$871,49 Unit Price incl. VAT
4
DOMED WASHER
5220646
$4,19 Unit Price incl. VAT
5
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
6
BOLT
7515382
$4,19 Unit Price incl. VAT
7
WASHER 1.5 X 2.0 X .020
7555898
$2,09 Unit Price incl. VAT
8
WASHER 1.50 X 2.00 X .025
7556076
$9,44 Unit Price incl. VAT
9
WASHER 1.505 X 2.00 X 0.30
7556804
$1,56 Unit Price incl. VAT
10
BUSHING MOVEABLE 1/2 INCH
3576504
$41,99 Unit Price incl. VAT
11
BUSHING MOVEABLE 1 IN
3576511
$52,49 Unit Price incl. VAT
12
BUTTON RAMP
5430766
5450873
$11,54 Unit Price incl. VAT
13
BOLT (10)
7511854
$2,09 Unit Price incl. VAT
14
RETAINING RING
7710448
$5,76 Unit Price incl. VAT
15
SPACER .020
5210752
$3,14 Unit Price incl. VAT
16
RAMP; SPRING
5131446
9999999
Not Available
17
CLUTCH SPRING; CHROME/BLACK
7041782
$115,49 Unit Price incl. VAT

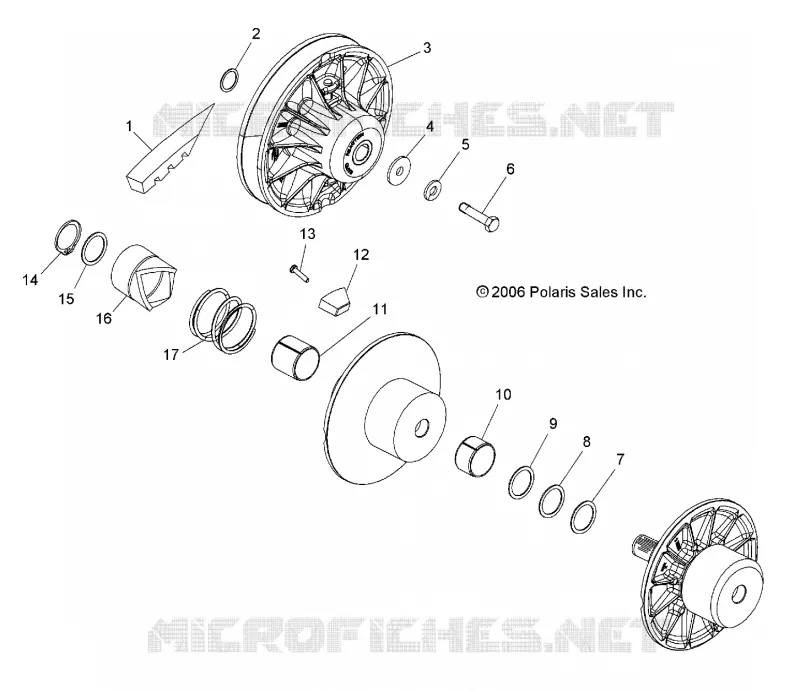

Find the detailed DRIVEN CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RANGER 500 4X4 EFI - R06RD50AC
