1
Engine displacement
500
2
Year
2006
3
Trim
RANGER 500 4X4 EFI - R06RD50AC
4
Parts Catalog
WISHBONES
5
Parts Diagram
Parts Catalog
PROP REAR SHAFT
by
THROTTLE
WISHBONES
1
HEX FLANGE SCREW; 3/8-16 X 3.75
7518403
$4,19 Unit Price incl. VAT
1
BOLT
7515472
$4,19 Unit Price incl. VAT
2
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
2
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
3
BUSHING-A-ARM-SHORT BLK
5434548
5439270
$4,19 Unit Price incl. VAT
4
SHORT A-ARM SHAFT
5020826
$23,09 Unit Price incl. VAT
5
A-FRAME RH BLK
1542126067
Not Available
5
A-FRAME LH BLK
1542125067
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
BALL-JOINT 52 DEG
7080927
7061306
$52,49 Unit Price incl. VAT
8
BALL JOINT BRACKET
5211121
$62,99 Unit Price incl. VAT
9
BOOT; RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
10
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT
11
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
12
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
13
CV SHIELD FRONT RIGHT SIDE GLOSS BLACK
5435029070
Not Available
13
CV SHIELD; FRONT; LEFT SIDE; GLOSS BLACK
5435028070
Not Available
14
SCREW
7512084
$2,09 Unit Price incl. VAT

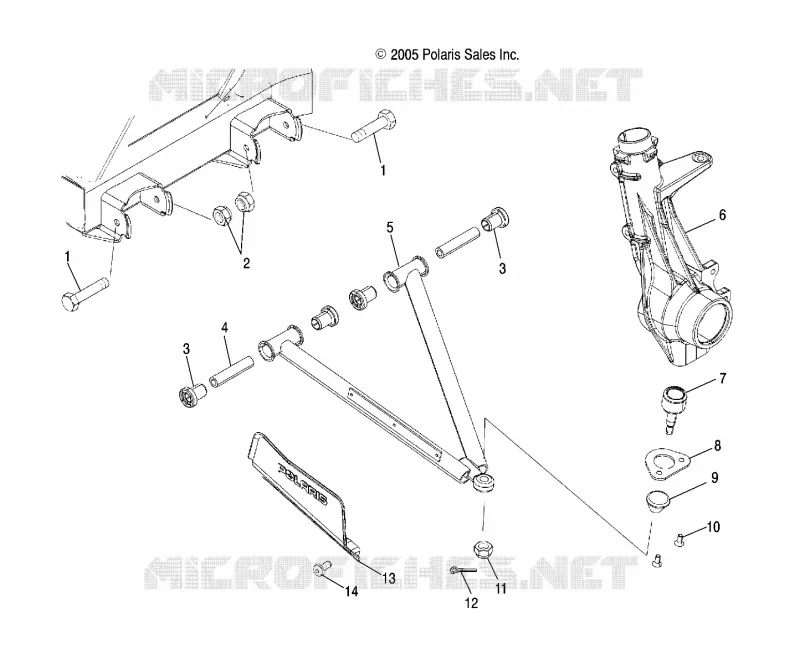

Find the detailed WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
