Engine displacement
500
2
Year
2006
3
Trim
RANGER 500 4X4 EFI - R06RD50AC
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
FRONT WHEEL
by
BRAKE FRONT BRAKE CALIPER
STEERING
1
2
2
3
3
4
4
5
5
6
7
7
8
9
10
11
12
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
BOOT SEAL ROD END 10MM
5411920
5412929
$20,99 Unit Price incl. VAT
2
ROD END 10MM 1/2-20LH 42 DEG
7061054
7061138
$104,99 Unit Price incl. VAT
3
NUT JAM; LEFT
7547028
$4,19 Unit Price incl. VAT
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
BOOT CLAMP; SMALL
7080978
$4,19 Unit Price incl. VAT
6
PASSENGER SIDE BOOT RACK
5412013
$104,99 Unit Price incl. VAT
7
BOOT CLAMP; LARGE
7080979
$10,49 Unit Price incl. VAT
8
BOLT
7515382
$4,19 Unit Price incl. VAT
9
SCREW
7515434
9999999
Not Available
10
BOLT CAP; 8 MM X 1.25 MM
7517924
$8,39 Unit Price incl. VAT
11
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
12
STEERING SHAFT BUSHING
5434106
$16,79 Unit Price incl. VAT
13
BUSHING
7556301
$6,29 Unit Price incl. VAT
14
WHEEL-STEERING 15
1821334
1823678
$241,49 Unit Price incl. VAT
15
NUT-M16X2-6G
7547188
$10,49 Unit Price incl. VAT
16
CAP-STEERING WHEEL
5434768
5436536
$62,99 Unit Price incl. VAT
16
STEERING WHEEL CAP
5436536
$62,99 Unit Price incl. VAT
17
POLARIS STAR LOGO
7078465
$23,09 Unit Price incl. VAT
18
WAVE WASHER
7556063
$5,76 Unit Price incl. VAT
19
STEERING SHAFT; UPPER
1821018
9999999
Not Available
20
STEERING SHAFT WITH JOINTS; LOWER
1822732
9999999
Not Available
21
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
22
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
23
DRIVER SIDE BOOT RACK
5412012
$115,49 Unit Price incl. VAT
24
BOLT 10 MM X 1.25 MM X 65 MM
7517909
$10,49 Unit Price incl. VAT
25
WASHER
7556099
$3,14 Unit Price incl. VAT
26
NUT-M10X1.25-HX-LOCK-Y
7547177
7548155
$1,56 Unit Price incl. VAT
27
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
28
STEERING GEAR BOX ASSEMBLY
1822636
9999999
Not Available
29
BOLT 5/16-18X3/4
7512371
$9,44 Unit Price incl. VAT

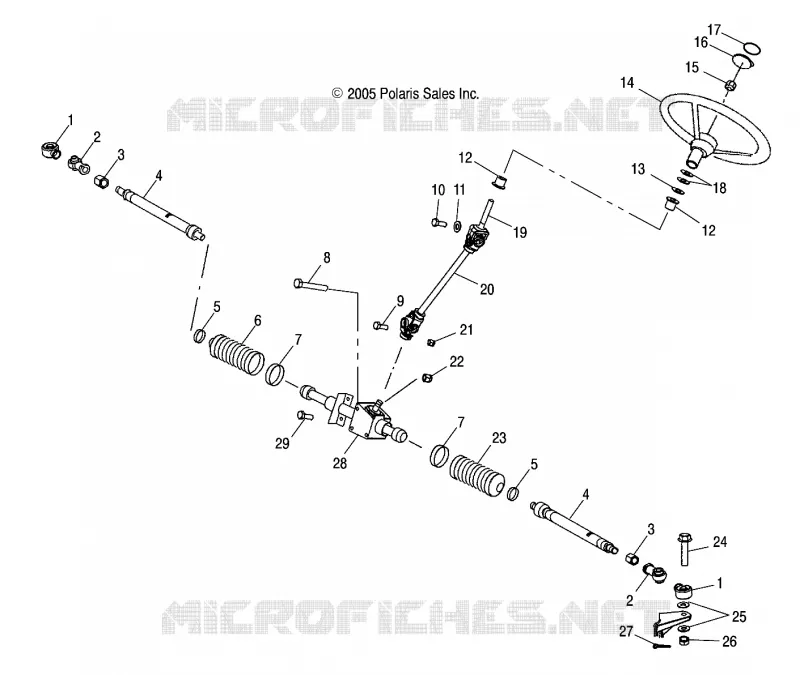

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
