Parts Catalog
RECOIL STARTER 650 (4915411541045A)
5
Parts Diagram
Parts Catalog
RECOIL STARTER 500 AND 500 CLASSIC (4915411541044A)
by
WATER PUMP 400 (4915411541046A)
RECOIL STARTER 650 (4915411541045A)
-
RECOIL STARTER (Incl. 1-9)
3083492
Not Available
1
CASE STARTER
3083494
Not Available
2
SPRING SPIRAL
3083495
9999999
Not Available
3
REEL ASSEMBLY
3083377
$104,99 Unit Price incl. VAT
4
RATCHET
3083378
9999999
Not Available
5
RETURN SPRING
3083463
9999999
Not Available
6
FRICTION SPRING
3083379
9999999
Not Available
7
FRICTION PLATE
3083464
9999999
Not Available
8
NUT FLANGE(10)
3083381
9999999
Not Available
9
100 FT. NYLON STARTER ROPE
2870621
$47,24 Unit Price incl. VAT
10
PULLEY STARTING
3083502
Not Available
11
BOLT&WASHER ASM.
3083868
9999999
Not Available
12
BOLT&WASHER ASM.
3083869
9999999
Not Available

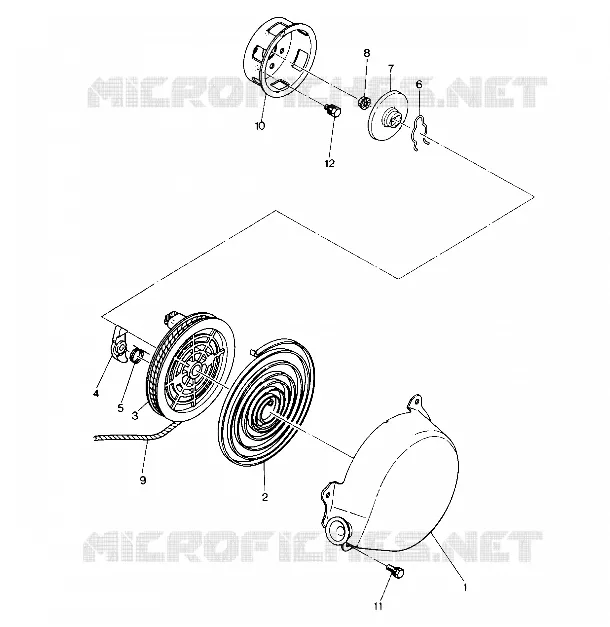

Find the detailed RECOIL STARTER 650 (4915411541045A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
