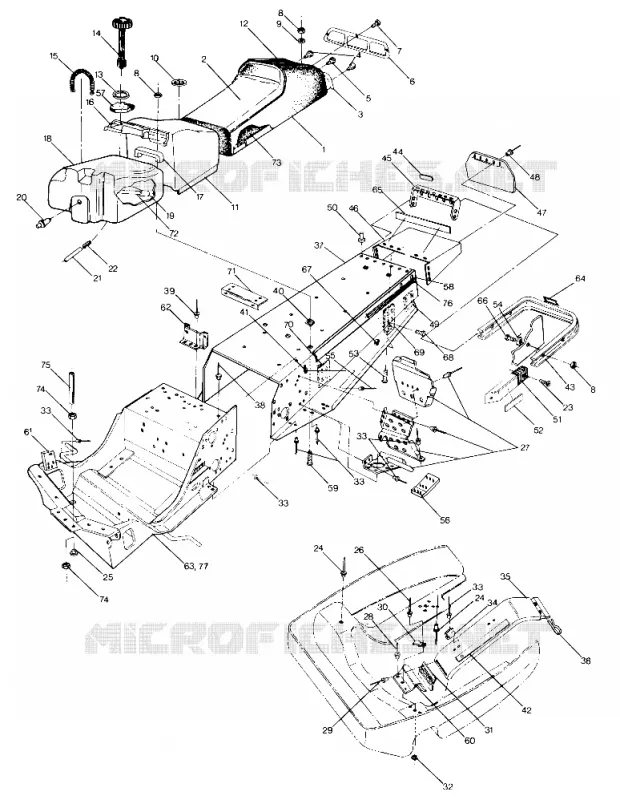

CHASSIS AND SEAT 500 AND 500 CLASSIC (4915411541003A)
5
Parts Diagram
Parts Catalog
CHASSIS AND SEAT 400 AND 650 (4915411541001A)
by
STEERING 400, 500, 500 CLASSIC AND 650 (4915411541011A)
CHASSIS AND SEAT 500 AND 500 CLASSIC (4915411541003A)
-
CUSHION SEAT(CLASSIC#89) Substituted by 2200747
2681373
Not Available
1
SEAT ASM (INDY500) Substituted by 2200747 (Incl. 2-7 12 75) (500 Only)
2681385
Not Available
2
COVER SEAT(INDY500) Substituted by 2200738 (500 Only)
2681386
Not Available
2
COVER SEAT(CLASSIC#89) Substituted by 2200738 (500 Classic Only)
2681374
Not Available
3
HOUSING TAILLIGHT
5430425
Not Available
4
BULB TAILLIGHT/TACH/SPEEDO (10)
4030015
$8,39 Unit Price incl. VAT
5
BULB BRAKELIGHT
4030019
9999999
Not Available
6
LENS TAILLIGHT
5430423
9999999
Not Available
7
SCREW
7511840
9999999
Not Available
8
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
9
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
10
GROMMET-GAS TANK
5430575
9999999
Not Available
11
COVER TANK (INDY 500) Substituted by 2200738 (500 Only)
2681384
Not Available
11
COVER TANK(CLASSIC#89) [No Longer Available] (500 Classic Only)
2681375
Not Available
12
BUCKLE&STRAP
2681290
9999999
Not Available
13
GASKET-GAS CAP
5810142
5810513
$15,74 Unit Price incl. VAT
14
GAUGE GAS
2511149
2511246
$83,99 Unit Price incl. VAT
15
SPRING; TANK
7042020
9999999
Not Available
16
STRAP GAS TANK
5221722
9999999
Not Available
17
CUSHION TANK H.D.
5420126
9999999
Not Available
18
TANK GAS (Incl. 19-22)
2511150
Not Available
19
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
20
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
21
KIT-TANK VENT
2200190
9990000
Not Available
22
VENT-TANK
5430579
9999999
Not Available
23
SCREW
7511863
9999999
Not Available
24
RIVET
7621457
$2,09 Unit Price incl. VAT
25
PLUG
7080288
Not Available
26
POP RIVET
7621402
$2,09 Unit Price incl. VAT
27
FOOTREST ASM LH
2200250
Not Available
27
FOOTREST ASM RH
2200254
Not Available
28
RIVET
7621452
9999999
Not Available
29
POP RIVET
7621330
$2,09 Unit Price incl. VAT
30
CLIP WIRING
4020035
9999999
Not Available
31
HINGE
5210728
9999999
Not Available
32
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
33
RIVET
7621429
$2,09 Unit Price incl. VAT
34
CLIP; BELT
5220817
5222769
$15,74 Unit Price incl. VAT
35
GUARD CLUTCH
5230118
5240965
Not Available
36
PIN-CLUTCH COVER
7080216
7080698
$17,84 Unit Price incl. VAT
37
TUNNEL (500 SKS) Substituted by 1011806 (500 SKS Only w/1011694)
1011747
Not Available
37
TUNNEL (500) Substituted by 1011808
1011746
Not Available
38
RIVET; (MONOBOLT)
7661620
7661637
$2,09 Unit Price incl. VAT
40
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
41
SNAP-MALE
7080227
9999999
Not Available
42
DECAL WARNING [No Longer Available] (600 SE)
7072153
Not Available
43
BUMPER; REAR
5224334
9999999
Not Available
43
BUMPER; (SKS)
5224349
9999999
Not Available
44
DECAL TRACK Substituted by 7072872
7072132
Not Available
45
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
46
PANEL CLOSE-OFF REAR Substituted by 1011694-067 (Trail SKS Only)
1011694
Not Available
47
FLAP SNOWSILVER
5410394
5410394-1038
$194,24 Unit Price incl. VAT
48
RIVET
7621418
$2,09 Unit Price incl. VAT
49
WEARPLATE TUNNEL (400 & 650)
5222061
Not Available
50
RIVET
7661818
9999999
Not Available
51
CAP BUMPER
5430930
9999999
Not Available
52
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
53
BOLT
7512103
$6,29 Unit Price incl. VAT
54
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
55
RIVET(10)
7621222
9999999
Not Available
56
PLATE;TUNNEL;RH
5220635
9999999
Not Available
56
PLATE;TUNNEL;LH
5220634
9999999
Not Available
57
FOAM FILLER
5810201
Not Available
58
DECAL(47.5##)TUNNEL [No Longer Available]
7072078
Not Available
59
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
60
BRACKET; HINGE
5220406
5241437
Not Available
61
SUPT. MUFFLER [No Longer Available]
1011582
Not Available
62
BRACKET
5221932
9999999
Not Available
63
BULKHEAD (500) Substituted by 1011743-067 (500 Only)
1011743
Not Available
64
DECAL(36.0##)R.BUMP. [No Longer Available] (500 Only)
7072653
Not Available
64
DECAL STRIPE R.BUMPER [No Longer Available] (500 Classic Only)
7072623
Not Available
65
DECAL 500 SKS [No Longer Available] (500 SKS Only)
7072646
Not Available
66
BOLT
7512240
9999999
Not Available
67
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
68
BOLT(10)
7515432
9999999
Not Available
69
BRKT R.SUSP LH MTG. Substituted by 1011749-067
1011666
Not Available
69
BRKT R.SUSP RH MTG. Substituted by 1011750-067
1011667
Not Available
70
BRKT.
5220542
5220542-067
Not Available
71
BRKT; TOOL BOX
5220973
9999999
Not Available
72
LINE FUEL (FT.)
8450003
8450003-1525
$136,49 Unit Price incl. VAT
73
SEAT BUN [No Longer Available]
5430707
Not Available
74
PALNUT(10)
7670031
9999999
Not Available
75
SPACER (500 Classic Only)
5332896
Not Available
76
DECAL BUMPER EXT.SILVER [No Longer Available]
7072541
Not Available
77
BULKHEAD (500CLASSIC) Substituted by 1011743-067 (500 Classic Only)
1011745
Not Available
