CARBURETOR 400 (4915411541055A)
5
Parts Diagram
Parts Catalog
FUEL PUMP 650 (4915411541054A)
by
CARBURETOR 500 AND 500 CLASSIC (4915411541056A)
CARBURETOR 400 (4915411541055A)
1
CARB. ASM. (Incl. 2-32)
3130396
Not Available
2
TOP ASSEMBLY; MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
3
Gasket
_______
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SPRING THROTTLE
3130318
9999999
Not Available
5
PLATE THROTTLE
3130216
3130027
$19,94 Unit Price incl. VAT
6
E RING(10) Substituted by 3130003
3130245
Not Available
7
NEEDLE JET
3130374
9999999
Not Available
8
VALVE THROTTLE
3130332
Not Available
8
VALVE THROTTLE (2.0) Substituted by 3130464 (400)
3130375
Not Available
9
NEEDLE JET(Q-2)
3130376
9999999
Not Available
10
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
11
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
12
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130009
9999999
Not Available
14
SPRING
3130010
$18,89 Unit Price incl. VAT
15
SCREW AIR Substituted by 3130011
3130233
Not Available
16
SPRING AIR ADJUST
3130012
9999999
Not Available
17
SUBSTITUTED BY 3130065
3130331
$18,89 Unit Price incl. VAT
18
VALVE NEEDLE
3130016
3131146
$99,74 Unit Price incl. VAT
19
NEEDLE VALVE PACKING
3130017
$7,34 Unit Price incl. VAT
20
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
21
FLOAT PIN
3130240
3130361
$18,89 Unit Price incl. VAT
22
FLOAT CHAMBER GASKET
3130020
$31,49 Unit Price incl. VAT
23
FLOAT ASM. Substituted by 3130430
3130032
Not Available
24
CAP
3130237
$8,39 Unit Price incl. VAT
25
O-RING
3130239
9999999
Not Available
26
NIPPLE
3130387
9999999
Not Available
27
HEX HEAD MAIN JET
3130126
9999999
Not Available
28
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT
29
WASHER
3130014
$3,14 Unit Price incl. VAT
30
FUEL LINE-50FT.PKG.
2870563
8450003-1525
$136,49 Unit Price incl. VAT
31
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
32
RIVET; (PLUG)(50)
7661912
9999999
Not Available

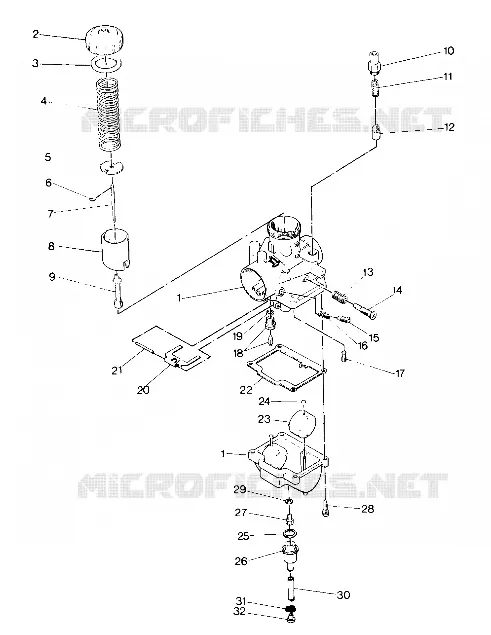

Find the detailed CARBURETOR 400 (4915411541055A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
