1
Engine displacement
500
2
Year
1989
3
Trim
500 - 0890764
4
Parts Catalog
CYLINDER 400 (4915411541034A)
5
Parts Diagram
Parts Catalog
CRANKCASE 650 (4915411541033A)
by
CYLINDER 500 AND 500 CLASSIC (4915411541035A)
CYLINDER 400 (4915411541034A)
1
CYLINDER (Incl. 2 3)
3083450
Not Available
2
STUD
3083360
9999999
Not Available
3
STUD
3080016
9999999
Not Available
4
GASKET CYLINDER
3083469
9999999
Not Available
5
NUT
3080047
7547013
$3,14 Unit Price incl. VAT
6
WASHER SPRING(10)
3080050
Not Available
7
HEAD CYLINDER
3083847
9999999
Not Available
8
PIPE; WATER
3083452
9999999
Not Available
9
GASKET HEAD
3083470
3084028
Not Available
10
FLANGE NUT
3082910
9999999
Not Available
11
WASHER
3082505
9999999
Not Available
12
PLUG
3083044
9999999
Not Available
13
GASKET-ALUM
3082719
9999999
Not Available
14
SWITCH THERMAL(93 DEG.C.)
3083055
9999999
Not Available
15
NECK FILLER
3083398
9999999
Not Available
16
GASKET FILLER NECK
3083340
9999999
Not Available
17
BOLT FLANGE
3083361
9999999
Not Available
18
MOUNT; CARBURETOR
3083306
9999999
Not Available
19
SOCKET HEAD BOLT
3081330
9999999
Not Available
20
BAND ASM.
3083085
7082340
$36,74 Unit Price incl. VAT
21
SCREW; PAN HEAD
3083086
9999999
Not Available
22
GASKET EXHAUST
3082510
9999999
Not Available
23
NUT
3080285
9999999
Not Available
24
LOCK WASHER
3080530
9999999
Not Available

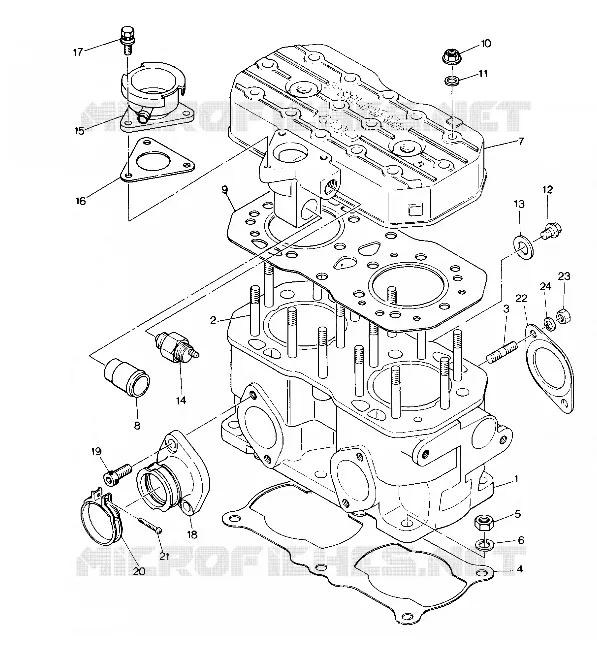

Find the detailed CYLINDER 400 (4915411541034A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
