PISTON AND CRANKSHAFT 500 AND 500 CLASSIC (4915411541038A)
5
Parts Diagram
Parts Catalog
PISTON AND CRANKSHAFT 400 (4915411541037A)
by
PISTON AND CRANKSHAFT 650 (4915411541039A)
PISTON AND CRANKSHAFT 500 AND 500 CLASSIC (4915411541038A)
1
CRANKSHAFT ASM.
3083794
9999999
Not Available
2
CRANKSHAFT #1
3083362
Not Available
3
CRANKSHAFT 2
3083713
9999999
Not Available
4
CRANKSHAFT #3 Substituted by 3084357
3083364
Not Available
5
CONNECTING ROD
3083252
9999999
Not Available
6
PIN; CRANK
3083233
9999999
Not Available
7
PIN CRANK 2
3083456
5141629
$57,74 Unit Price incl. VAT
8
CRANKPIN SPACER
3083277
9999999
Not Available
9
BEARING-LARGE END
3083255
9999999
Not Available
10
SPACER CRANKSHAFT
3080447
9999999
Not Available
11
BEARING BALL
3083480
3515063
$60,89 Unit Price incl. VAT
12
BALL BEARING C-4
3083714
9999999
Not Available
13
SET PISTON .010 /.25MM O/S
3083902
9999999
Not Available
13
PISTON
3083901
9999999
Not Available
13
PISTON .020 O/S (.020 Over) (Incl. 16)
3083903
Not Available
14
PISTON PIN
3083838
2207579
$356,99 Unit Price incl. VAT
15
RING PISTON .010 O/S (2)
3083970
9999999
Not Available
15
RING PISTON .020 O/S (2)
3083971
9999999
Not Available
15
RING PISTONSTD. (2)
3083963
9999999
Not Available
16
PISTON PIN CLIP
3083839
9999999
Not Available
17
BEARING SMALL END
3083216
3515064
$25,71 Unit Price incl. VAT
18
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
19
WASHER-SPRING(10)
3083094
7557228
$6,29 Unit Price incl. VAT
20
KEY
3081447
9999999
Not Available
21
GEAR DRIVE OIL PUMP
3083782
9999999
Not Available

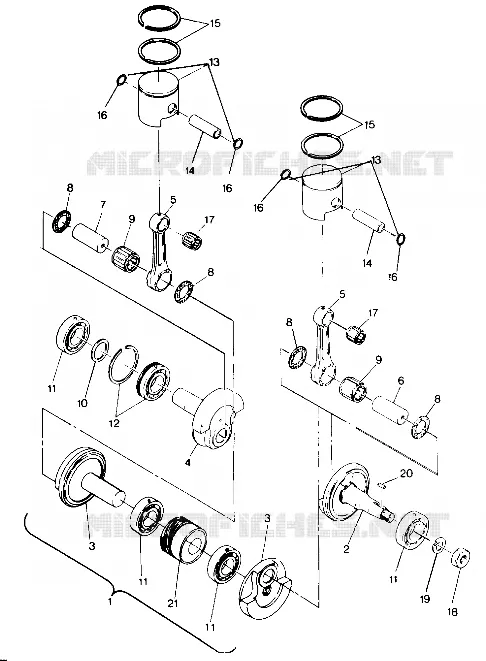

Find the detailed PISTON AND CRANKSHAFT 500 AND 500 CLASSIC (4915411541038A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
