1
Engine displacement
700
2
Year
1997
3
Trim
SLT 700 - B974572
4
Parts Catalog
PROPULSION SLT 700 B974572 (4941124112B004)
5
Parts Diagram
Parts Catalog
DRIVE SYSTEM SLT 700 B974572 (4941124112B003)
by
WATER INLET SLT 700 B974572 (4941124112B009)
PROPULSION SLT 700 B974572 (4941124112B004)
1
1
2
3
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
NUT HEX S.S.(10)
7542455
9999999
Not Available
2
BRKT;STRG.CABLE
5241741
9999999
Not Available
3
STUD PUMP MTG.
5020842
9999999
Not Available
4
SEAL WATER PIPE
5411107
9999999
Not Available
5
PIPE WATER ENG. RESTRICTED
5131545
9999999
Not Available
6
O RING;(10)
5410735
9999999
Not Available
7
STATOR PUMP MACH
5131708
9999999
Not Available
8
SPACER
5010294
9999999
Not Available
9
BEARING
3514008
9999999
Not Available
10
SEAL BRG STATOR
3610043
9999999
Not Available
11
SPACER IMPELLER
5010295
9999999
Not Available
12
IMPELLER 12-17DEG SWIRL 3BLADE
5131457
9999999
Not Available
13
EXTENSION PUMP
5131196
9999999
Not Available
14
SCREW(10)
7522019
9999999
Not Available
15
ANODE-ZINC
5630598
9999999
Not Available
16
WASHER PUMPSTUD SEAL
7555941
9999999
Not Available
17
HSG PUMP W/O RING INT STUD
5131573
9999999
Not Available
18
WASHER
7555966
$4,15 Unit Price incl. VAT
19
O-RING PUMP HSG/HULL
5410652
9999999
Not Available
20
O-RING(10)
5410817
9999999
Not Available
21
SCREEN ENG.INLET
5431523
9999999
Not Available
22
NOZZLE STEERING
5130999
9999999
Not Available
23
BOLT S.S.
7515366
9999999
Not Available
24
COLLAR
5130938
9999999
Not Available
25
WASHER LOCK S.S.
7552610
9999999
Not Available
26
WASHER FLAT S.S.(10)
7555835
9999999
Not Available
27
BRG STRG.NOZZLE
5431518
9999999
Not Available
28
BOLT
7515389
9999999
Not Available
29
NOZZLE STAT. 0X4 WEDGE
5131569
9999999
Not Available
30
WEDGE PUMP (0DEGX4DEG)
5630662
9999999
Not Available
31
SCREW
7512064
9999999
Not Available
32
CONE PUMP
5431519
9999999
Not Available
33
O-RING(10)
5410819
9999999
Not Available
34
SHAFT; STUB
5020697
9999999
Not Available
35
O-RING(10)
5410818
9999999
Not Available

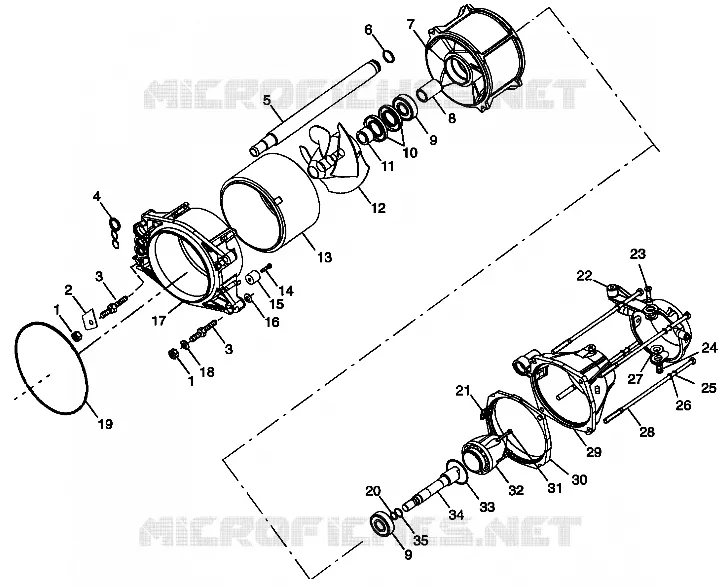

Find the detailed PROPULSION SLT 700 B974572 (4941124112B004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
