STARTING MOTOR SLT 700 B974572 (4941124112C006)
5
Parts Diagram
Parts Catalog
MAGNETO SLT 700 B974572 (4941124112C005)
by
DRAIN SLT 700 B974572 (4941124112C007)
STARTING MOTOR SLT 700 B974572 (4941124112C006)
-
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
-
STARTER
4060118
9999999
Not Available
1
BOLT; THROUGH
3240113
9999999
Not Available
2
BOLT
7516807
9999999
Not Available
3
BRUSH COMPL.
3240115
9999999
Not Available
4
SPRING BRUSH
3240111
9999999
Not Available
5
O-RING
3084408
9999999
Not Available
6
WASHER(10)
3240119
9999999
Not Available
7
WASHER SPRING(10)
3240117
9999999
Not Available
8
NUT(10)
3240116
9999999
Not Available
9
RUBBER RING
3084405
9999999
Not Available
10
BRACKET ASM;REAR
3240207
9999999
Not Available
11
WASHER; THRUST(10)
3240118
9999999
Not Available
12
WASHER; THRUST
3240112
9999999
Not Available
13
ARMATURE ASM.
3240205
9999999
Not Available
14
ASM.; BENDIX
4060119
4012614
$394,79 Unit Price incl. VAT
15
BRACKET ASMFRONT
3240206
9999999
Not Available
16
O-RING
3240114
9999999
Not Available
17
WASHER
3083737
7556994
$6,29 Unit Price incl. VAT
18
SNAP RING
3240126
9999999
Not Available
19
STOPPER
3240125
9999999
Not Available
20
COVER
3240123
9999999
Not Available
21
SPRING
7041457
9999999
Not Available
22
BUSHING-6X8X8 FLNG PLASTIC
3574214
9999999
Not Available
23
WASHER
7555908
7556994
$6,29 Unit Price incl. VAT
24
GEAR ASM.
3240122
4012614
$394,79 Unit Price incl. VAT
25
GEAR ASM.
3240120
4012614
$394,79 Unit Price incl. VAT

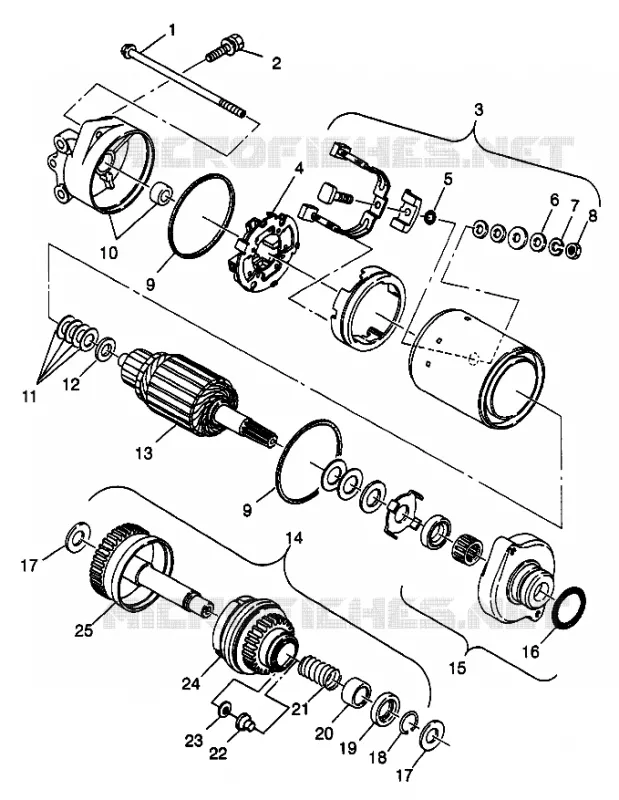

Find the detailed STARTING MOTOR SLT 700 B974572 (4941124112C006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
