1
Engine displacement
700
2
Year
1997
3
Trim
SLT 700 - B974572
4
Parts Catalog
CARBURETOR SLT 700 B974572 (4941124112C001)
5
Parts Diagram
Parts Catalog
CYLINDER MANIFOLD SLT 700 B974572 (4941124112B014)
by
CRANKSHAFT PISTON SLT 700 B974572 (4941124112C003)
CARBURETOR SLT 700 B974572 (4941124112C001)
-
-
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
37
38
39
40
41
42
43
44
45
46
-
CARB.ASM 2 CYL.
1253134
9999999
Not Available
-
KIT CARB.REBUILD PWC
2200910
9990000
Not Available
1
BOLT
7516812
9999999
Not Available
2
BASE AIRBOX
5630539
9999999
Not Available
3
GASKET CARB. UPPER
5830062
9999999
Not Available
4
JET R.BLOCK COMP
3050146
9999999
Not Available
5
JOINT CONNECTING
3050156
Not Available
6
TUBE RUBBER
3050157
Not Available
7
KIT CHECKVALVE MID-RANGE KHN
2200685
9999999
Not Available
8
SCREEN FUELSTRAINER
3050144
9999999
Not Available
9
KIT ACCEL.PUMP (1 Per Carb)
2200732
Not Available
10
KITNDLE VLVE97DOM
2200733
9999999
Not Available
11
JET-MAIN 80 KEIHIN
3050101
9999999
Not Available
12
JET-PILOT 55 KEIHIN
3050124
9999999
Not Available
13
JET-PILOT 70 KEIHIN
3050130
9999999
Not Available
14
SCREW JET BLOCK COVER
3050135
9999999
Not Available
15
COVER JET BLOCK
3050139
9999999
Not Available
16
KIT DIAPHRAGM-JET BLOCK
2200730
9999999
Not Available
17
SCREW; JET BLOCK
3050137
9999999
Not Available
18
JET FR.BLOCK COMP.
3050145
9999999
Not Available
19
O-RING JET BLOCK
3050147
9999999
Not Available
20
COLLAR
3050138
9999999
Not Available
21
O-RING (VALVE SEAT)
3050148
9999999
Not Available
22
KIT CHECKVALVE MAIN(KEIHIN)
2200688
9999999
Not Available
23
KIT IDLESCREW (KEIHIN)
2200689
9999999
Not Available
24
CAP; LIMITER
3050140
9999999
Not Available
25
KIT MAINMIX.SCREW(KEIHIN)
2200690
9999999
Not Available
26
KIT IDLESTOP SCREW
2200731
9999999
Not Available
27
E-CLIP
3050158
9999999
Not Available
28
COLLAR
3050149
9999999
Not Available
29
SPRING; TORSION
3050150
9999999
Not Available
30
WASHER
3050152
9999999
Not Available
31
LEVER SYNCHRONIZING
3050153
Not Available
32
KIT SYNCH.SCREW
2200734
9999999
Not Available
33
WASHER; LOCK
3050154
9999999
Not Available
34
NUT THROTTLE SHAFT
3050155
9999999
Not Available
35
GASKET CARB.
5830043
9999999
Not Available
36
CAM ACCEL.PUMP
3050151
9990000
Not Available
37
HOSE;FUEL;(ACCEL.PUMP)
3050142
9999999
Not Available
38
BALLJOINT HI-ANGLE
7080673
7061306
$52,49 Unit Price incl. VAT
39
FITTING; T
3050141
9999999
Not Available
40
PLATE CONNECTING
3050160
9999999
Not Available
41
SCREW CONNECT.PLATE
3050159
9999999
Not Available
42
SCREW
3050136
9999999
Not Available
43
KITFUELPUMP BODY(KEIHIN)
2200687
9999999
Not Available
44
KITGASKET(FUELPUMP)
2200686
9999999
Not Available
45
HOSE; FUEL
3050143
9999999
Not Available
46
CLAMP HOSE S.S.
7080476
$11,54 Unit Price incl. VAT

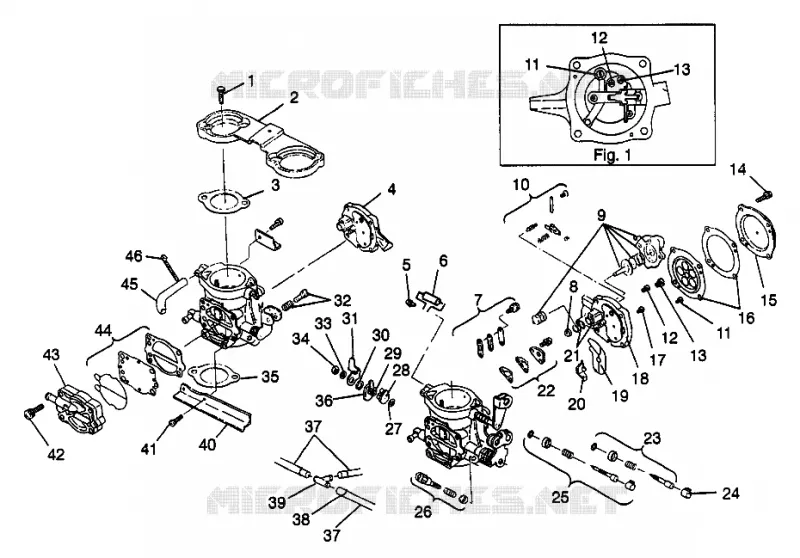

Find the detailed CARBURETOR SLT 700 B974572 (4941124112C001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
