1
Engine displacement
700
2
Year
1997
3
Trim
SLT 700 - B974572
4
Parts Catalog
MAGNETO SLT 700 B974572 (4941124112C005)
5
Parts Diagram
Parts Catalog
OIL PUMP SLT 700 B974572 (4941124112C004)
by
STARTING MOTOR SLT 700 B974572 (4941124112C006)
MAGNETO SLT 700 B974572 (4941124112C005)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
KIT IGNITION UPDATE
2873355
Not Available
2
WASHER
7555974
9999999
Not Available
3
SCREW
7517229
9999999
Not Available
4
BOLT
7516809
9999999
Not Available
5
HOLDER; MAGNET
5432282
9999999
Not Available
6
FLYWHEEL ASM.
4060126
9999999
Not Available
7
WASHER
7547033
9999999
Not Available
8
WASHER LOCK
7547032
9999999
Not Available
9
SCREW
7517335
9999999
Not Available
10
WASHER
7555907
$10,49 Unit Price incl. VAT
11
NUT HEX (PUMP DRIVE)
5020779
9999999
Not Available
12
CONTROLLER IGNITION
4060117
Not Available
13
COILIGNITIONTWIN
4060121
9999999
Not Available
14
SPARK PLUG CAP
4020159
9999999
Not Available
15
CABLE TIE4 INCH
7080483
9999999
Not Available

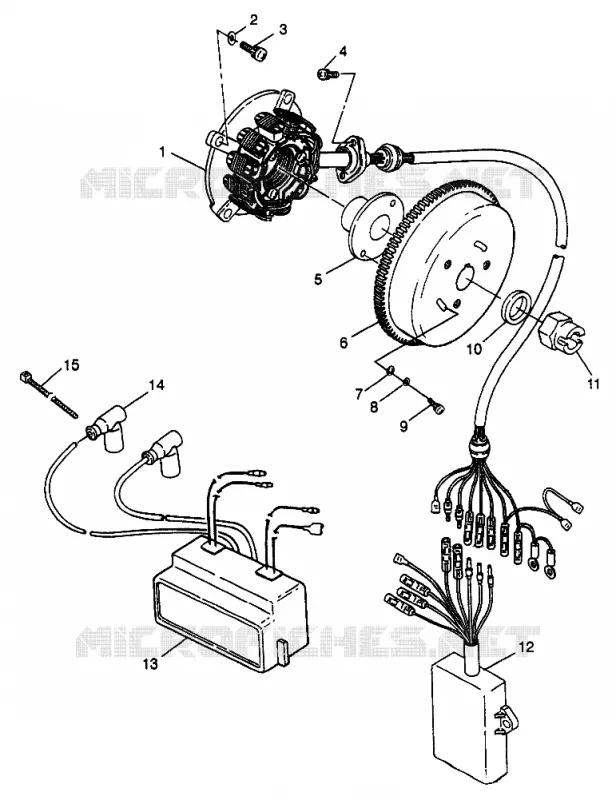

Find the detailed MAGNETO SLT 700 B974572 (4941124112C005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
