1
Engine displacement
700
2
Year
1997
3
Trim
SLT 700 - B974572
4
Parts Catalog
DECALS SLT 700 B974572 (4941124112A007)
5
Parts Diagram
Parts Catalog
HULL BODY SLT 700 B974572 (4941124112A006)
by
FRONT STORAGE COMPARTMENT SLT 700 B974572 (4941124112A008)
DECALS SLT 700 B974572 (4941124112A007)
-
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
-
KIT DECAL 97 SLT700 (Incl. 4-13)
2200968
Not Available
1
DECAL;BOW
7076404
9999999
Not Available
2
DECAL LH COMP.DOOR
7076405
9999999
Not Available
3
DECAL LH LIONHEAD
7076414
9999999
Not Available
4
DECAL;FIRE EXTINGUISHER
7073467
9999999
Not Available
5
DECAL SAFETY
7074915
Not Available
6
DECALCAPSIZE CAUTION
7073865
9999999
Not Available
7
DECAL SLT 700
7076409
9999999
Not Available
8
DECAL LH BTM.RUBRAIL
7076412
9999999
Not Available
9
DECAL LH TOP RUBRAIL
7076410
9999999
Not Available
10
DECAL LH UPPER DECK
7076407
9999999
Not Available
11
DECAL WARN REFUEL
7074740
Not Available
12
DECAL UP.CONSOLE SLT
7076464
9999999
Not Available
13
DECAL-LOWER CONSOLE
7077188
Not Available
14
DECAL DASH WARNING Substituted by 7078380
7074770
Not Available
15
DECAL RH LIONHEAD
7076415
9999999
Not Available
16
DECAL RH COMP.DOOR
7076406
9999999
Not Available
17
DECAL PWC LOGO FRONT
7076291
Not Available
18
DECAL RH UPPER DECK
7076408
9999999
Not Available
19
DECAL RH BTM.RUBRAIL
7076413
9999999
Not Available
20
DECAL RH TOP RUBRAIL
7076411
Not Available
21
DECAL;RECOMMENDED OIL
7074959
9999999
Not Available

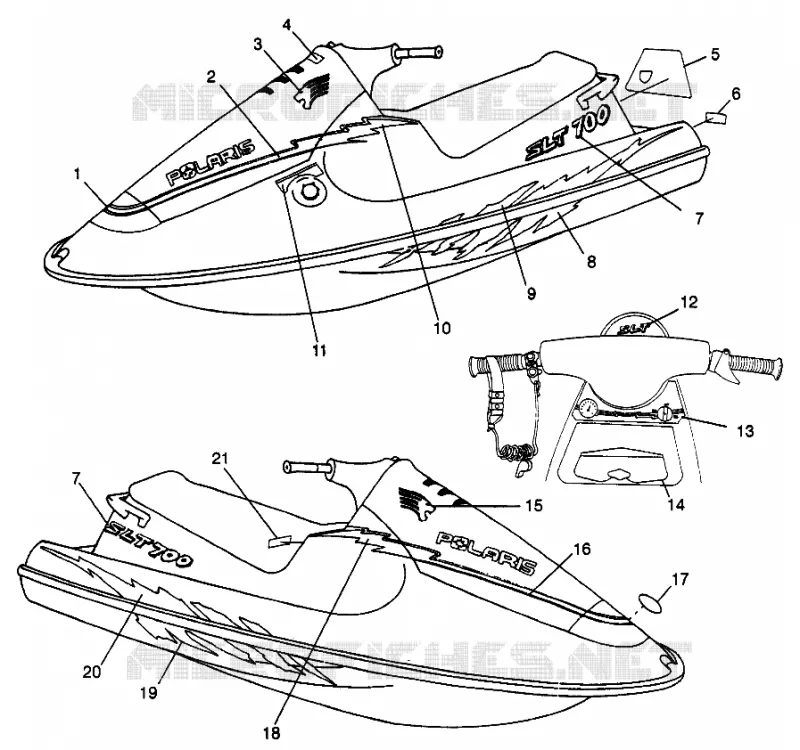

Find the detailed DECALS SLT 700 B974572 (4941124112A007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
