Engine displacement
570
2
Year
2017
3
Trim
ACE 570 EFI
4
Parts Catalog
SEAT MOUNTING AND BELT
5
Parts Diagram
Parts Catalog
SEAT ASM.
by
SIDE NETS
SEAT MOUNTING AND BELT
1
2
2
3
4
5
5
6
7
8
8
9
10
11
11
11
12
13
13
1
WELD-SEAT BASE;REAR;BACK;M.BLK
1020911458
Not Available
2
CAP-LEVER
5451392
1021378
$136,49 Unit Price incl. VAT
2
SEAT SLIDER WELD
1021378
$136,49 Unit Price incl. VAT
3
SEAT GUIDE
5263794
9999999
Not Available
4
BUMPER SHORT RUBBER
5412067
$7,34 Unit Price incl. VAT
5
SCREW
7515177
$5,76 Unit Price incl. VAT
6
BOLT M10 X 1.5 X 45
7519906
$9,44 Unit Price incl. VAT
7
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
8
NUT-U M10X1.5 SHORT
7547748
$9,44 Unit Price incl. VAT
9
3 POINT SEAT BELT ASSEMBLY
2635049
$346,49 Unit Price incl. VAT
10
HEX FLANGE SCREW 12 MM X 1.75 MM X 25 MM
7519072
$10,49 Unit Price incl. VAT
11
NUT NYLOK 12 MMX 1.5 MM
7540000
$7,34 Unit Price incl. VAT
12
CHANNEL-SEAT SLIDER
5260809
9999999
Not Available
13
CLIP-CONNECTOR 6.35MM HOLE
7082134
$7,34 Unit Price incl. VAT
13
SEAT BELT BUCKLE SWITCH
2635937
$68,24 Unit Price incl. VAT

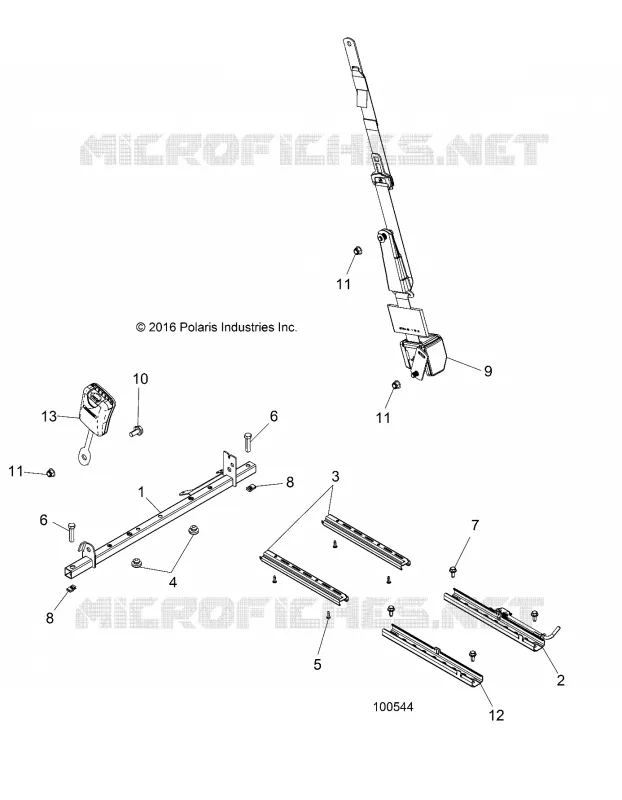

Find the detailed SEAT MOUNTING AND BELT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
