1
Engine displacement
570
2
Year
2017
3
Trim
ACE 570 EFI
4
Parts Catalog
SUSPENSION, REAR STABILIZER BAR
5
Parts Diagram
Parts Catalog
REFERENCES, TOOL KIT AND OWNERS MANUAL
by
WHEELS, REAR
SUSPENSION, REAR STABILIZER BAR
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
1
BAR-STABILIZER REAR BLK
5339373
9999999
Not Available
2
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
3
BUSHING-STABILIZER
5452764
$9,44 Unit Price incl. VAT
4
BUSHING BRACKET
5255357
5270849
$52,49 Unit Price incl. VAT
5
STABILIZER LINKAGE ASSEMBLY; 12 MM
1543843
9999999
Not Available
6
BOLT-CARR M8X1.25X25-8.8-ZOD
7518920
$9,44 Unit Price incl. VAT
7
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
8
FLAT WASHER
7555852
$4,19 Unit Price incl. VAT
9
LINKAGE BAR BUSHING; DURO 80
5416013
$9,44 Unit Price incl. VAT
10
SPACER .625 X .407 X .375
5334945
$7,34 Unit Price incl. VAT

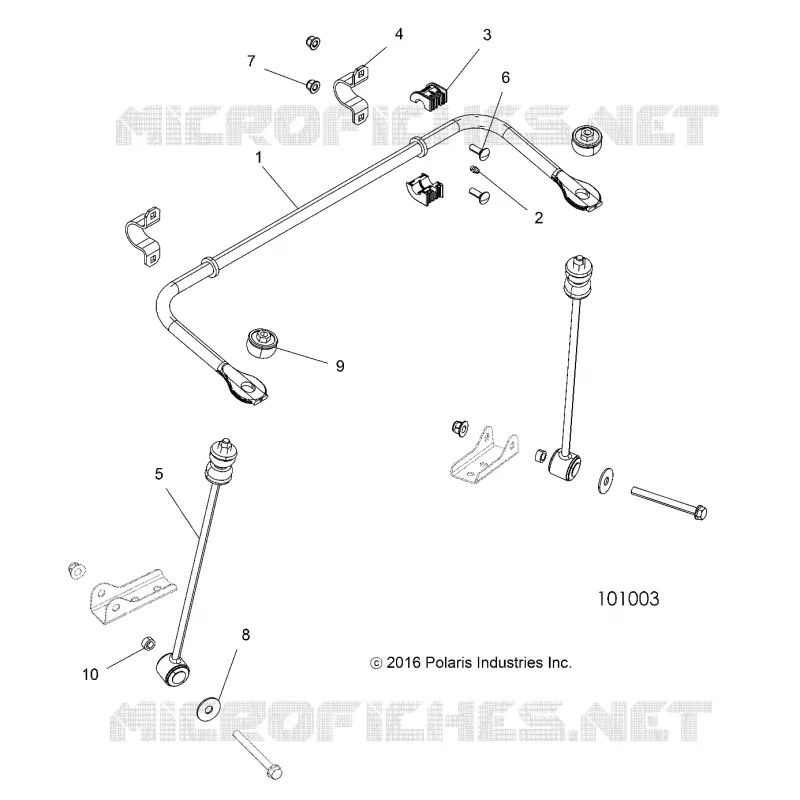

Find the detailed SUSPENSION, REAR STABILIZER BAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
