1
STARTER SOLENOID
4012001
4081641
$59,84 Unit Price incl. VAT
2
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
3
BATTERY KIT BOLT
2202213
$6,29 Unit Price incl. VAT
4
BATTERY; 195 COLD CRANK AMPS
4140006
$136,49 Unit Price incl. VAT
4
SEALED BATTERY; 32 AH; 500 CCA
4015955
$388,49 Unit Price incl. VAT
5
TUBE-BATTERY VENT;305MM
5435030
$9,44 Unit Price incl. VAT
6
BATTERY STRAP BRACKET
5264056
9999999
Not Available
7
PAD
5810455
$6,29 Unit Price incl. VAT
8
CABLE-BATT 6GA BK BAT/CHASS/TB
4015545
$99,74 Unit Price incl. VAT
9
CABLE TIE STRAP WITH EDGE CLIP
7081808
$10,49 Unit Price incl. VAT
9
CABLE-BATT 6GA RD BATT/SOL/TB
4015546
9999999
Not Available
10
CABLE-BATT 6GA BK FLAT FLAT M6
4014423725
Not Available
11
STUD-M6X1.0X19-M6 TAPTITE
7519333
$14,69 Unit Price incl. VAT
12
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
13
REGULATOR-3PH 50A SERIES HISPD
4014856
4016868
$246,74 Unit Price incl. VAT
13
VOLTAGE REGULATOR
4016868
$246,74 Unit Price incl. VAT
14
M6X1.0X30 CARRIAGE CL8.8 ZC CL
7520559
$7,34 Unit Price incl. VAT
15
CABLE-BATT 6GA RD FLAT FLAT M6
4014424830
Not Available
16
3 POST TERMINAL BLOCK
4015778
$62,99 Unit Price incl. VAT
17
COVER-TERMINAL BLOCK;3 POST
4014659
9999999
Not Available
18
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
19
NUTS-10-32 KEPS
7547341
$1,56 Unit Price incl. VAT
20
BOOT-BATTERY RED
4014836
$15,74 Unit Price incl. VAT
21
BOOT-BATTERY RED
4014994
9999999
Not Available
22
INSUL.CABLE SOL.
5410346
9999999
Not Available
23
BOLT RETAINER; 1/4 -20
7670154
$2,09 Unit Price incl. VAT
24
WASHER
7555748
$9,44 Unit Price incl. VAT

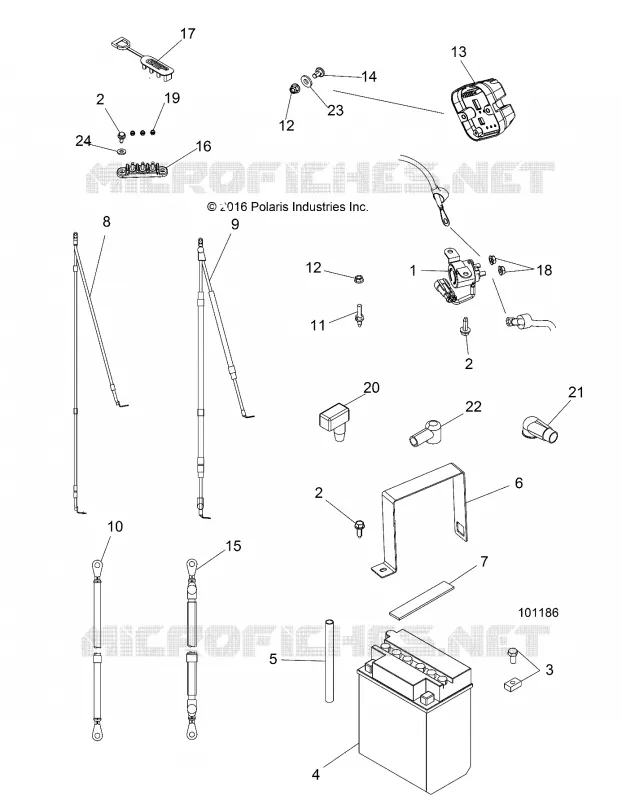

Find the detailed ELECTRICAL, BATTERY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
