DRIVE TRAIN, PRIMARY CLUTCH for POLARIS ACE 570 EFI from 2017

DRIVE TRAIN, PRIMARY CLUTCH

-

BASIC DRIVE CLUTCH BEARING ASSEMBLY

1323255

$992,24 Unit Price incl. VAT

1

DU BUSHING; 1.75

3514492

$54,59 Unit Price incl. VAT

2

CLUTCH WASHER

7556335

$11,54 Unit Price incl. VAT

3

SPRING CLUTCH 35-240

7043594

$89,24 Unit Price incl. VAT

4

BEARING COVER; .75 IN

3514684

$27,29 Unit Price incl. VAT

5

BUSHING

5430261

$13,64 Unit Price incl. VAT

6

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

7

ATV CLUTCH BOLT; 7/16 X 20 X 8

7519287

$52,49 Unit Price incl. VAT

8

WASHER

5210748

$7,34 Unit Price incl. VAT

9

SCR-1/4-20X1.25 HX/FL GR5

7518062

$9,44 Unit Price incl. VAT

10

CLUTCH BUTTON

5439254

$14,69 Unit Price incl. VAT

11

ROLLER PIN

5020422

$4,19 Unit Price incl. VAT

12

WASHER CLUTCH SPIDER ROLLER

5438247

$3,14 Unit Price incl. VAT

13

ROLLER/BUSHING ASSEMBLY

1321457

$73,49 Unit Price incl. VAT

14

FLEXLOC NUT(10)

7541906

$6,29 Unit Price incl. VAT

15

CLUTCH WEIGHT

5632409

$62,99 Unit Price incl. VAT

16

SHOULDER BOLT

7512266

$5,76 Unit Price incl. VAT

17

NEEDLE BEARING

3514609

$60,89 Unit Price incl. VAT

18

CLUTCH SPACER

5633000

$52,49 Unit Price incl. VAT

19

SPACER CLUTCH LIMITER

5438823

$12,59 Unit Price incl. VAT

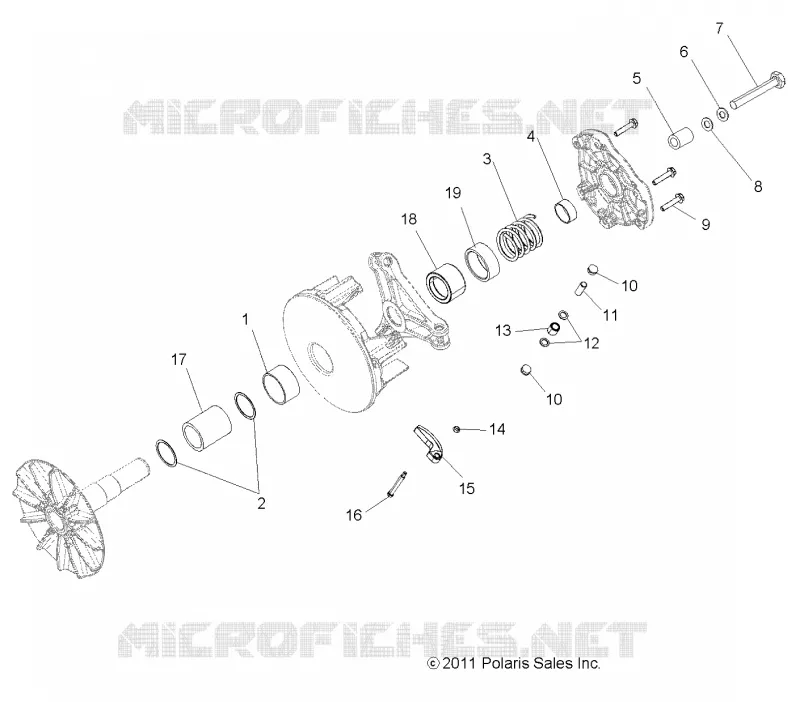

Find the detailed DRIVE TRAIN, PRIMARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
