Engine displacement
570
2
Year
2017
3
Trim
ACE 570 EFI
4
Parts Catalog
DECALS
5
Parts Diagram
Parts Catalog
by
FUEL TANK
DECALS
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
14
15
16
17
1
2
3
4
5
6
7
8
1
POLARIS STAR LOGO
7078465
$23,09 Unit Price incl. VAT
2
DECAL-HITCH
7170509
$13,64 Unit Price incl. VAT
3
DECAL-BELT CAUTION/CHECK
7177469
Not Available
4
DECAL-WARN PROPER USE 1 OC
7185101
9999999
Not Available
5
DECAL-STORG.CAP 120 LBS
7180538
9999999
Not Available
6
DECAL-REFLECTOR RED
7185221
9999999
Not Available
7
DECAL-WARN SEATBELT/DRV/RIDERS
7185102
9999999
Not Available
8
DECAL-WARN PASS/TIRE PR ACE
7186083
9999999
Not Available
9
DECAL-FR.FNDR FRONT 570 RH
7184217
9999999
Not Available
9
DECAL-FR.FNDR FRONT 570 LH
7184216
9999999
Not Available
10
DECAL-RR.FNDR REAR ACE RH
7184223
9999999
Not Available
10
DECAL-RR.FNDR REAR ACE LH
7184222
9999999
Not Available
11
DECAL-REFLECTOR AMBER
7184044
9999999
Not Available
12
DECAL-CAB FRAME;POLARIS;WHITE
7184215
9999999
Not Available
13
DECAL-CAUTION HEADER;AIRBOX
7180122
Not Available
14
DECAL-CAUTION INFO;AIRBOX
7181728
Not Available
15
DECAL-WARN MAX PAYLOAD ACE
7183981
9999999
Not Available
16
DECAL-WARN NEVER CARRY FUEL
7185278
Not Available
17
DECAL-ROPS ACE
7183178
9999999
Not Available

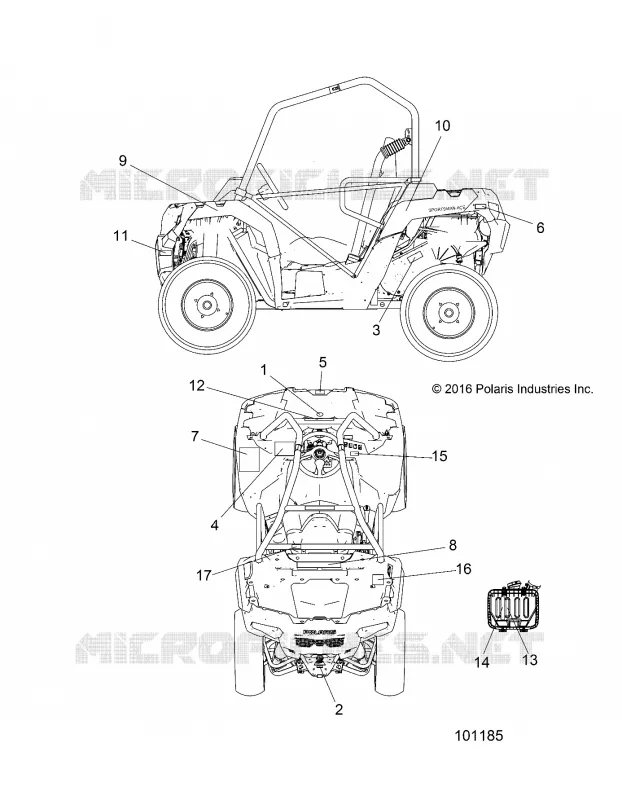

Find the detailed DECALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
