Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN 800 EFI 6X6 - A09CL76AA
4
Parts Catalog
CHASSIS, FRAME
5
Parts Diagram
Parts Catalog
REAR CAB SEAT
by
DRIVE TRAIN, FRONT PROP SHAFT
CHASSIS, FRAME
1
2
2
3
10
10
5
5
6
7
8
9
10
11
12
13
14
1
1
2
2
3
10
5
6
1
WELD-MAIN FRAMESPMN 6X6BLK
1016754067
Not Available
2
SCREW
7515399
9999999
Not Available
3
BRACKET BUMPER LOWER GS BLK
5245767067
Not Available
4
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
5
SCREW
7515398
9999999
Not Available
6
BRACE-SPPRT FRAME FR 6X6 LH BK
5253116067
Not Available
7
FRAME WELD; REAR; 6X6; GS BLK
1016757067
Not Available
8
SCREW
7515385
$10,49 Unit Price incl. VAT
9
SCR-7/16-20X7.25-HX-FL-CP-GR5Y
7519039
$52,49 Unit Price incl. VAT
10
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
11
NYLOK NUT; 7-16-20
7547066
$3,14 Unit Price incl. VAT
12
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
13
WASHER 7/16
7556212
$15,74 Unit Price incl. VAT
14
SUPPORT WELD; 6X6; MEDIUM GLOSS BLACK
1542636067
Not Available

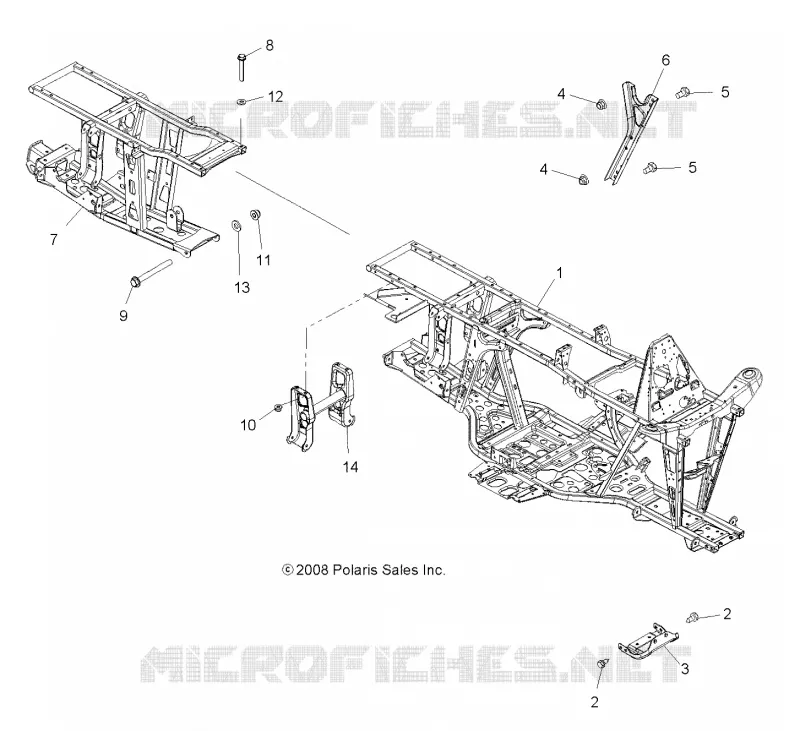

Find the detailed CHASSIS, FRAME POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
