SPORTSMAN 800 EFI 6X6 - A09CL76AA
4
Parts Catalog
REAR BRAKE CALIPERS
5
Parts Diagram
Parts Catalog
BRAKE LINES
by
FRONT BRAKE CALIPER
REAR BRAKE CALIPERS
-
1
1
2
3
4
5
6
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
23
24
25
1
2
2
3
3
4
4
4
5
5
6
6
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
-
BRAKE CALIPER
1911075
$488,24 Unit Price incl. VAT
1
ANVIL BODY KIT
2201873
$249,89 Unit Price incl. VAT
1
ASM-CALIPER DH4P ONE PORT 3/8
1911478
9999999
Not Available
2
BRAKE PAD KIT ASSEMBLY
2202414
$56,16 Unit Price incl. VAT
3
SLIDE BOLT KIT
2201870
$120,74 Unit Price incl. VAT
4
SEAL KIT; DH4P
2201872
$120,74 Unit Price incl. VAT
5
PISTON SEAL KIT
2201869
$225,74 Unit Price incl. VAT
6
FITTING-BLEED COMPACT
1910538
$19,94 Unit Price incl. VAT
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
20
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
23
BOLT
7512457
$7,34 Unit Price incl. VAT
24
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
25
WASHER .390 IN X .750 IN X .0
7556188
9999999
Not Available

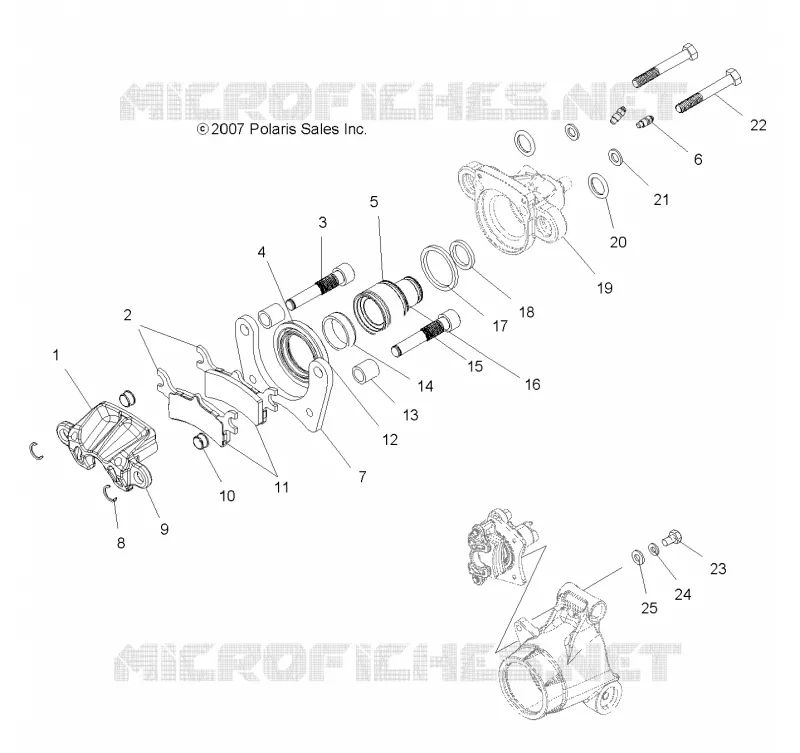

Find the detailed REAR BRAKE CALIPERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
