Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN 800 EFI 6X6 - A09CL76AA
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION STRUT
by
DUMP BOX
REAR SUSPENSION
1
1
2
2
3
3
3
3
4
4
5
5
6
6
7
8
8
8
8
8
8
8
8
9
10
11
11
11
11
12
13
14
15
15
15
15
16
16
16
16
17
18
18
18
18
19
19
20
20
20
20
21
21
21
21
22
22
22
22
23
23
24
24
24
24
25
25
26
26
27
27
27
27
28
29
30
30
1
1
2
3
4
5
6
7
8
9
10
11
1
WHEEL CARRIER BEARING; MACHINED
5135563
$121,79 Unit Price incl. VAT
2
BEARING BUSHING CARRIER; 7/16
5632291
$41,99 Unit Price incl. VAT
3
BUSHING-CONTROL LOWER BLK
5434550
5438902
$8,39 Unit Price incl. VAT
4
WASHER
7555740
$3,14 Unit Price incl. VAT
5
LOCK WASHER
7552614
$3,14 Unit Price incl. VAT
6
BOLT 7/16 X 14 X 2.75 GRADE 5
7517873
$4,19 Unit Price incl. VAT
7
SCREW
7515415
9999999
Not Available
8
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
9
IRS SHOCK; RIGHT; REAR; 6 X 6
7043451
$430,49 Unit Price incl. VAT
10
CAM SPRING ADJUST 1-3/8
5631014
$68,24 Unit Price incl. VAT
11
BUSHING-A-ARM-SHORT BLK
5434548
5439270
$4,19 Unit Price incl. VAT
12
COMPRESSION SPRING; 130/165; GS BLK
7041986067
Not Available
13
RETAINER SPRING; STEEL
5251753
$19,94 Unit Price incl. VAT
14
SCREW
7515433
$3,14 Unit Price incl. VAT
15
SHORT A-ARM SHAFT
5020826
$23,09 Unit Price incl. VAT
16
CONTROL ARM WELD; UPPER; LEFT; GS BLK
1014320067
Not Available
16
CONTROL ARM WELD; UPPER; RIGHT; GS BLK
1014321067
Not Available
17
STRAP-REAR GEARCASE;6X6;BLK
5252941067
Not Available
18
BUSHING PIVOT; WEAR; .385 ID
5136760
$16,79 Unit Price incl. VAT
19
BOLT 3/8-24 X 12.25
7519065
$36,74 Unit Price incl. VAT
20
WASHER
7556153
$3,66 Unit Price incl. VAT
21
CONTROL ARM BUSHING
5436833
$9,44 Unit Price incl. VAT
22
CONTROL ARM; LOWER; LEFT SIDE; GS BLK
1015888067
Not Available
22
CONTROL ARM; LOWER; RIGHT SIDE; GS BLK
1015889067
Not Available
23
SCREW
7512084
$2,09 Unit Price incl. VAT
24
SHIELD-CV REAR BASIC BLK RH
5435009070
Not Available
24
BASIC CV SHIELD; REAR; LEFT; GLOSS BLACK
5435008070
Not Available
25
TUBE-PIVOT .625 OD X .385 ID
5136759
$68,24 Unit Price incl. VAT
26
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
27
BOLT
7515472
$4,19 Unit Price incl. VAT
28
GEAR CASE STRAP; MID; GS BLK; 6X6
5252849067
Not Available
29
SHOCK PROTECTOR SLEEVE
5433551
9999999
Not Available
30
NUT-3/8-24 HEX LOC;GR8
7547344
$1,56 Unit Price incl. VAT

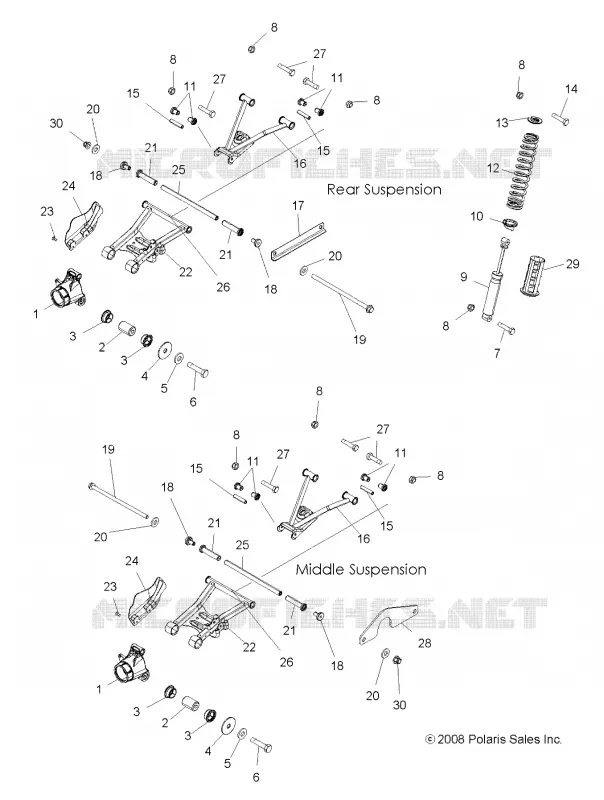

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
