DRIVE TRAIN, PRIMARY CLUTCH for POLARIS SPORTSMAN 800 EFI 6X6 - A09CL76AA from 2009

DRIVE TRAIN, MAIN GEARCASE OUTPUT SHAFT

DRIVE TRAIN, REAR GEARCASE INTERNALS

DRIVE TRAIN, PRIMARY CLUTCH

1

EBS CTCH ASM WIDE 21

1322749

$1 081,49 Unit Price incl. VAT

2

CLUTCH ASSEMBLY

1520836

$278,24 Unit Price incl. VAT

3

DU BUSHING; 1.75

3514492

$54,59 Unit Price incl. VAT

4

CLUTCH SPACER

5632060

$89,24 Unit Price incl. VAT

5

BUTTON CLUTCH (10)

5431936

5439254

$14,69 Unit Price incl. VAT

6

WASHER(10)

5430945

5438247

$3,14 Unit Price incl. VAT

7

ROLLER AND BUSHING ASSEMBLY

1321622

$62,99 Unit Price incl. VAT

8

ROLLER PIN

5020422

$4,19 Unit Price incl. VAT

9

FLEXLOC NUT(10)

7541906

$6,29 Unit Price incl. VAT

10

SPRING CLUTCH; 42-220; RED/BLUE

7043372

$89,24 Unit Price incl. VAT

11

BEARING COVER

3576510

$16,79 Unit Price incl. VAT

12

SCR-1/4-20X1.25 HX/FL GR5

7518062

$9,44 Unit Price incl. VAT

13

SHOULDER BOLT

7512266

$5,76 Unit Price incl. VAT

14

SHIFT WEIGHT

5632117

$62,99 Unit Price incl. VAT

15

BUSHING

5430261

$13,64 Unit Price incl. VAT

16

WASHER

5210748

$7,34 Unit Price incl. VAT

17

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

18

BOLT 7/16X20X8

7518197

7519287

$52,49 Unit Price incl. VAT

19

CLUTCH WASHER

7556335

$11,54 Unit Price incl. VAT

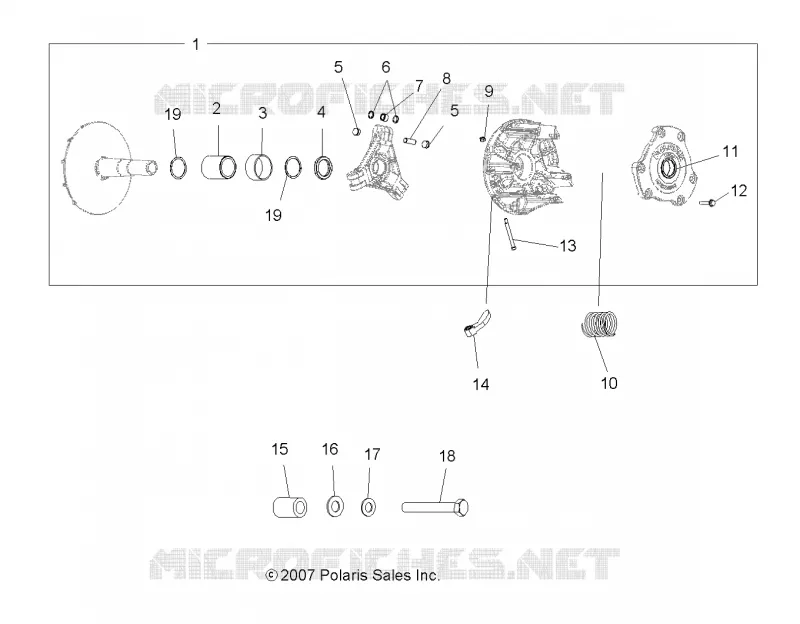

Find the detailed DRIVE TRAIN, PRIMARY CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
