1
SCREW
7515177
$5,76 Unit Price incl. VAT
2
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
3
ROD HINGE
5132358
$99,74 Unit Price incl. VAT
4
TAILGATE PLASTIC
5433388
$745,49 Unit Price incl. VAT
5
SCREW
7517561
$3,14 Unit Price incl. VAT
6
LATCH FLSHBLT TLGATE BLK
5433656
$120,74 Unit Price incl. VAT
7
T-GATE PADDLE LATCH; BLACK
5433655
$152,24 Unit Price incl. VAT
8
HITCH PIN
7661644
$4,19 Unit Price incl. VAT
9
WSHR RUBBER W/METAL BACK
7556143
$9,44 Unit Price incl. VAT
10
SHFT TLGATE LTCH 5/16 ZINC
5132373
$23,09 Unit Price incl. VAT
11
BACKREST BLK ASM.
2682522070
Not Available
11
BACKREST COVERING; GLOSS BLACK
2681664070
Not Available
12
BOX LATCH BRACKET
5243304
$31,49 Unit Price incl. VAT
13
SCREW-1/4-20X2 (10)
7517938
$2,40 Unit Price incl. VAT
14
TIE DOWN RING
7081101
$14,69 Unit Price incl. VAT
15
MUD GUARD; BOX; LEFT; GLOSS BLACK
5437873070
Not Available
16
SCREW1/4-20X3/4PA PN;LK;G2-Y
7517742
$10,49 Unit Price incl. VAT
17
TAILGATE CABLE
7080881
$73,49 Unit Price incl. VAT
18
COVER-TAILGATE BLK
5244068067
Not Available
19
BOX-MOLDED 6X6 MOD BLK
5437912070
Not Available
20
DECAL-REFLECT.2.88 RED
7079925
$15,74 Unit Price incl. VAT
21
SCREW
7517686
$3,14 Unit Price incl. VAT
22
MUD GUARD; BOX; RIGHT; GLOSS BLACK
5437874070
Not Available
23
WELD-BOX SUPPORT;BLK
1016881067
Not Available
24
SCR-1/4-20X.375 TX/TR HD GR2-B
7519047
9999999
Not Available
25
SCREW
7512084
$2,09 Unit Price incl. VAT

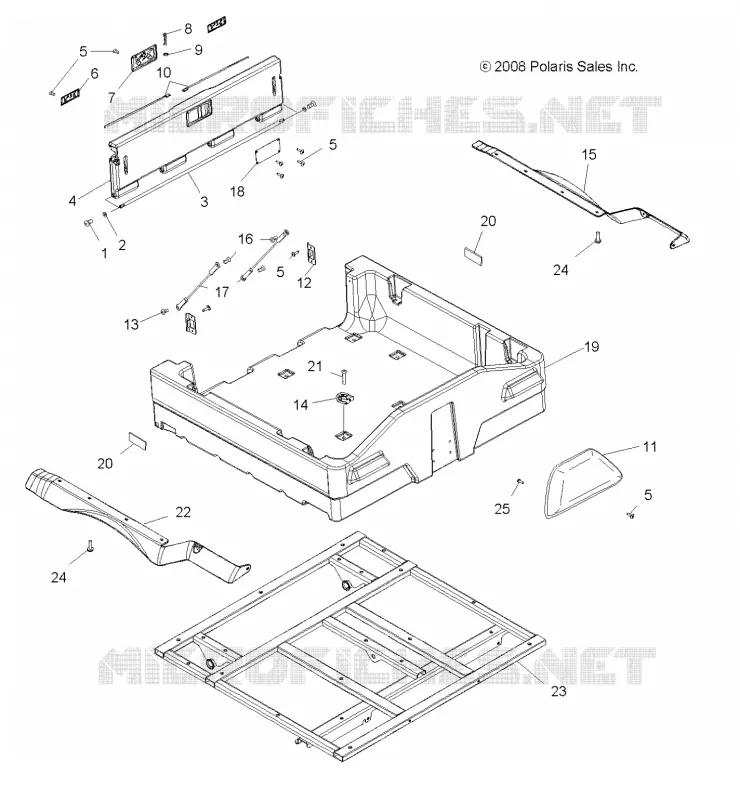

Find the detailed DUMP BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
