Engine displacement
800
2
Year
2009
3
Trim
SPORTSMAN TOURING 800 EFI INTL - A09DN76FC
4
Parts Catalog
BODY, PASSENGER SEAT BOTTOM AND SEAT BACK
5
Parts Diagram
Parts Catalog
OPERATOR SEAT
by
BRAKES, FOOT PEDAL AND MASTER CYLINDER
BODY, PASSENGER SEAT BOTTOM AND SEAT BACK
1
1
2
2
3
4
5
6
7
8
24
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
PASSENGER SEAT COVER ASSEMBY; BACK
2684113
$257,24 Unit Price incl. VAT
1
ASM-SEAT PASSENGER BACK
2684091
2684898
$451,49 Unit Price incl. VAT
2
SEAT COVERING; GLOSS BLACK
2684112070
Not Available
2
ASM-SEAT PASS BOTTOM BLK
2684118070
Not Available
3
BUMPER SHORT RUBBER
5412067
$7,34 Unit Price incl. VAT
4
EXPANSION CLIP; 6 MM
7081304
$13,64 Unit Price incl. VAT
5
PLUNGER-LATCH
5136319
7519251
$47,24 Unit Price incl. VAT
6
PLATE-SEAT PLUNGER;BLK
5251350067
Not Available
7
SCREW 1/4-20 X .75 TORX
7518280
$2,09 Unit Price incl. VAT
8
BOLT-M6X1.0X25 TORX PNHD BLK
7518535
$7,34 Unit Price incl. VAT
9
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
10
WELD-SEAT BACK;SUPPORT;BLK
1016116067
Not Available
11
ASM-STRAP SEAT LATCH
2684130
9999999
Not Available
12
SEAT LATCH PLATE
5251162
9999999
Not Available
13
PLATE-SEAT BACK;SUPPORT;E-COAT
5251351329
Not Available
14
BUMPER-RUBBER TAPERED
5413358
9999999
Not Available
15
SEAT BODY LATCH
5437119
$13,64 Unit Price incl. VAT
16
SEAT LATCH CAP
5437120
$16,79 Unit Price incl. VAT
17
SEAT LATCH LEVER
5437121
$9,44 Unit Price incl. VAT
18
COVER-PASS SEAT SUPPORT
5437296
9999999
Not Available
19
SEAT LATCH SPRING
7081466
$57,74 Unit Price incl. VAT
20
SCREW
7512253
$7,34 Unit Price incl. VAT
21
SCREW
7517417
9999999
Not Available
22
SCR-1/4-20X1.50-HX/TAP-R MAG
7518418
$7,34 Unit Price incl. VAT
23
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
24
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
25
RIVET-POP
7621220
9999999
Not Available
26
FOIL-SEAT BASE;PASSENGER
5813323
9999999
Not Available

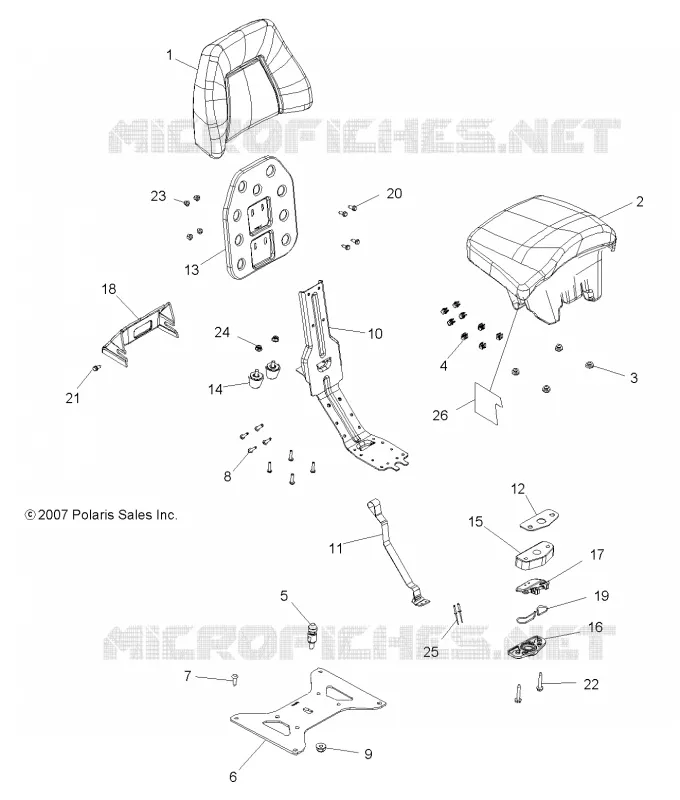

Find the detailed BODY, PASSENGER SEAT BOTTOM AND SEAT BACK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
